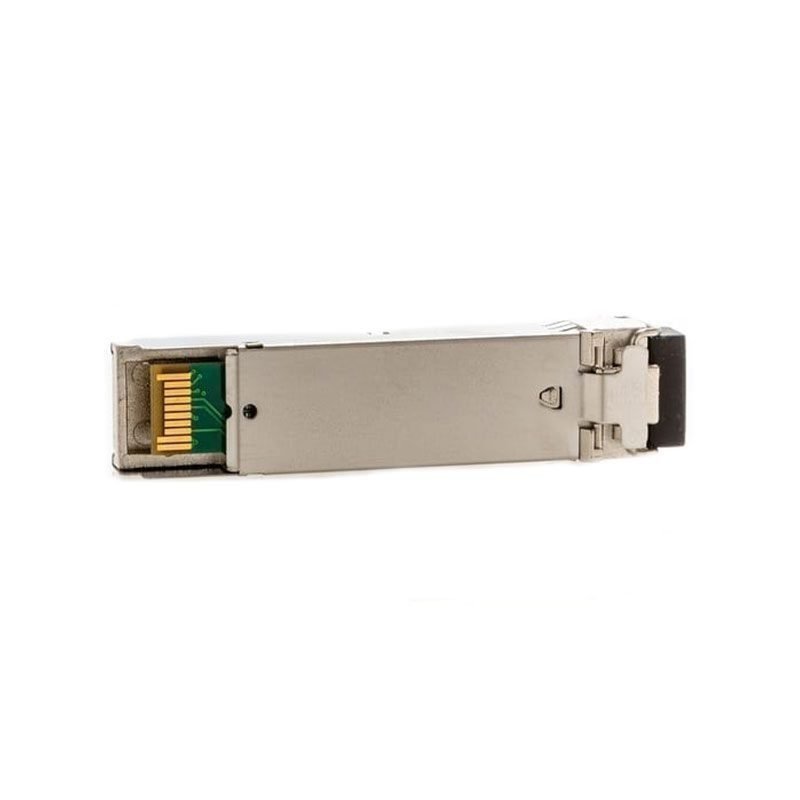

SFP-DW49-80K-HP Technical Specifications
HP 1000BASE-DWDM ITU 100GHz 80km SFP Transceiver
The SFP-DW49-80K-HP is a DWDM SFP Transceiver Module designed for high-speed connectivity. This HP Transceiver operates at a data rate of 1.25 Gbps and is compliant with the 1000BASE-DWDM Gigabit Ethernet standard. It features a channel number of 49 and utilizes a wavelength of 1538.19nm with a 100GHz ITU specification. The module supports single-mode fiber (SMF) and is RoHS-6 compliant, ensuring it is lead-free. With a maximum reach of 80km, the SFP-DW49-80K-HP is equipped with a dual LC connector and requires a 3.3V power supply. Additionally, it includes Digital Optical Monitoring (DOM) capabilities for enhanced performance tracking. The transceiver operates within a commercial temperature range of 0ºC to 70ºC, making it suitable for various environments.
