SFP-DW56-80K-HP Technical Specifications

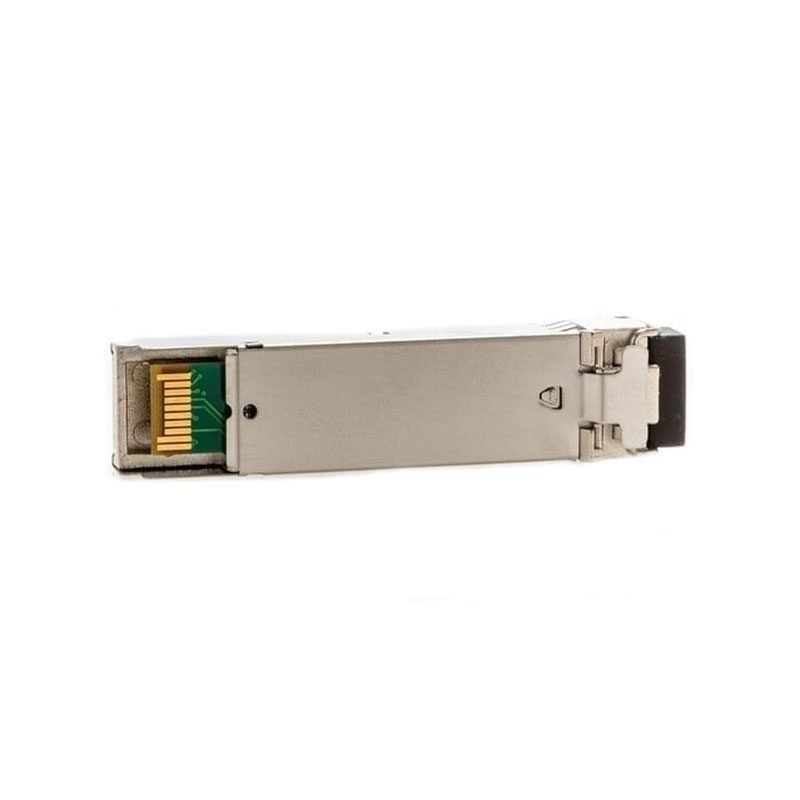

HP 1000BASE-DWDM ITU 100GHz 80km SFP Transceiver
This DWDM SFP Transceiver module from HP is engineered for optimal performance in Gigabit Ethernet applications. It operates at a data rate of 1.25 Gbps and supports the 1000BASE-DWDM standard. The device utilizes a channel frequency of 56 and a wavelength of 1532.68nm, adhering to ITU 100GHz specifications. With single-mode fiber (SMF) support, it ensures a maximum reach of 80 kilometers. The transceiver is equipped with a dual LC connector and operates on a 3.3V power supply. Additionally, it features Digital Optical Monitoring (DOM) for enhanced management capabilities. It is RoHS-6 compliant, ensuring it is lead-free, and it operates within a commercial temperature range of 0ºC to 70ºC, making it a reliable choice for various environments.
