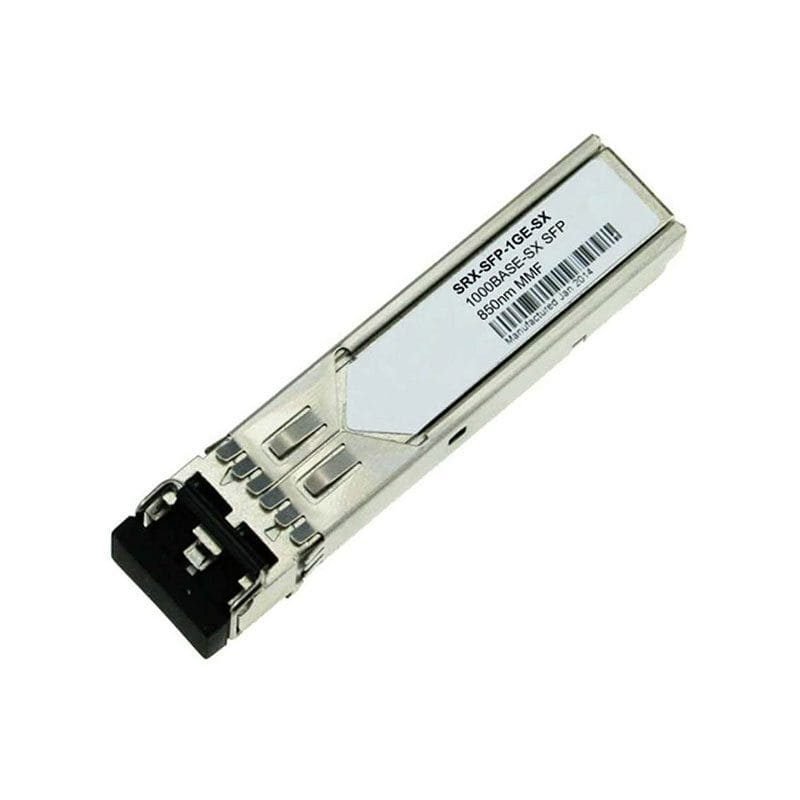

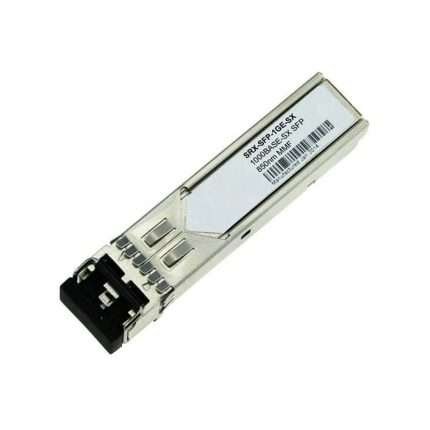

SRX-SFP-1GE-SX Technical Specifications
Juniper 1000BASE-SX SFP Optical Module
Key Features:
- Product Name: 1000BASE-SX SFP Optical Module
- Product Type: SFP (Mini-GBIC)
- Application/Usage: Ideal for Data Networking
- Interfaces/Ports: 1 x 1000BASE-SX
- Data Transfer Rate: 1 Gbps (Gigabit Ethernet)
- Compatibility: Compatible with SRX210 Base System and other Juniper Networks devices
- Vendor: FS
- Form Factor: SFP
- Maximum Data Rate: 1000 Mbps
- Wavelength: 850 nm
- Maximum Cable Distance: Up to 550 m over OM2 Multimode Fiber (MMF)
- Connector: Duplex LC
- Optical Components: VCSEL 850 nm
- Media: MMF
- DOM Support: Yes
- TX Power: -9.5 to -3 dBm
- Receiver Sensitivity: < -17 dBm
- Commercial Temperature Range: 0 to 70°C (32 to 158°F)
- Protocols: MSA Compliant, IEEE 802.3z
