UCS-E140S-M1/K9 Technical Specifications

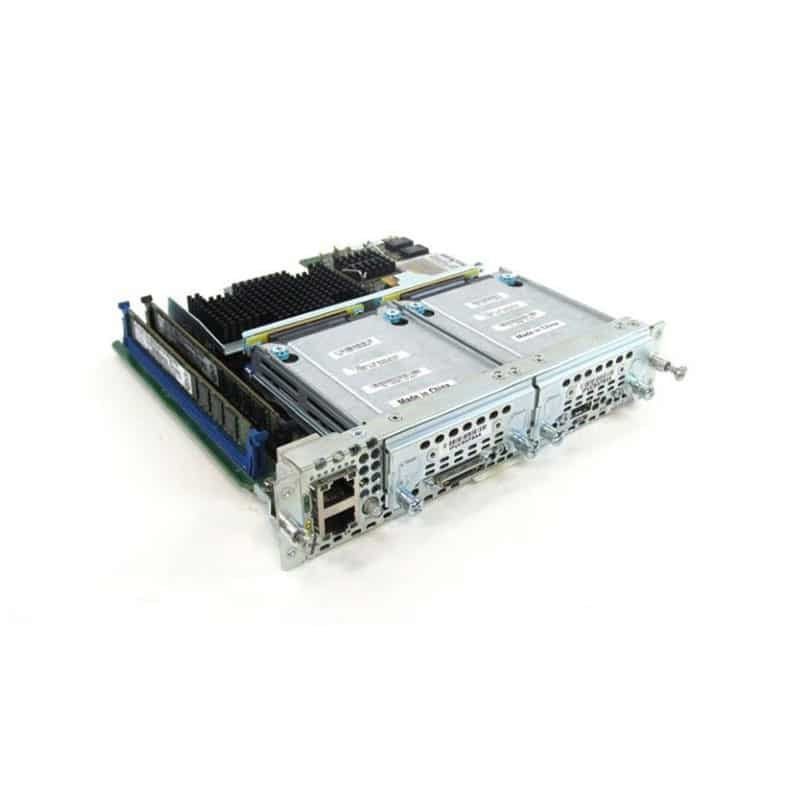

Cisco UCS E140S M1 – Blade Server with Xeon E3-1105C 1 GHz
Cache Memory
Installed Size: 6 MB (L3 cache)
Chassis
Form Factor: Blade Server, Hot-Swap Bays: 2 Bays, Storage Bays: Hot swap, Drive Form Factor: 2.5″ (6.4 cm), Interface: SAS
RAM
Installed Size: 8 GB, Max Supported Size: 16 GB, Technology: DDR3 SDRAM, Memory Speed: 1333 MHz
Networking
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet, Remote Management: CLI, IPMI 2.0
Processor
Type: Xeon E3-1105C, Clock Speed: 1 GHz, Number of Cores: Quad-Core, Supports Enhanced Intel SpeedStep Technology, Hyper-Threading, and Virtualization
Environmental Parameters
Operating Humidity: 5 – 95%, Max Operating Temperature: 104 °F, Min Operating Temperature: 32 °F
Dimensions & Weight
Depth: 7.5 in, Height: 1.6 in, Width: 7.4 in, Weight: 2.43 lbs
This server is designed for efficiency and reliability in demanding environments.
