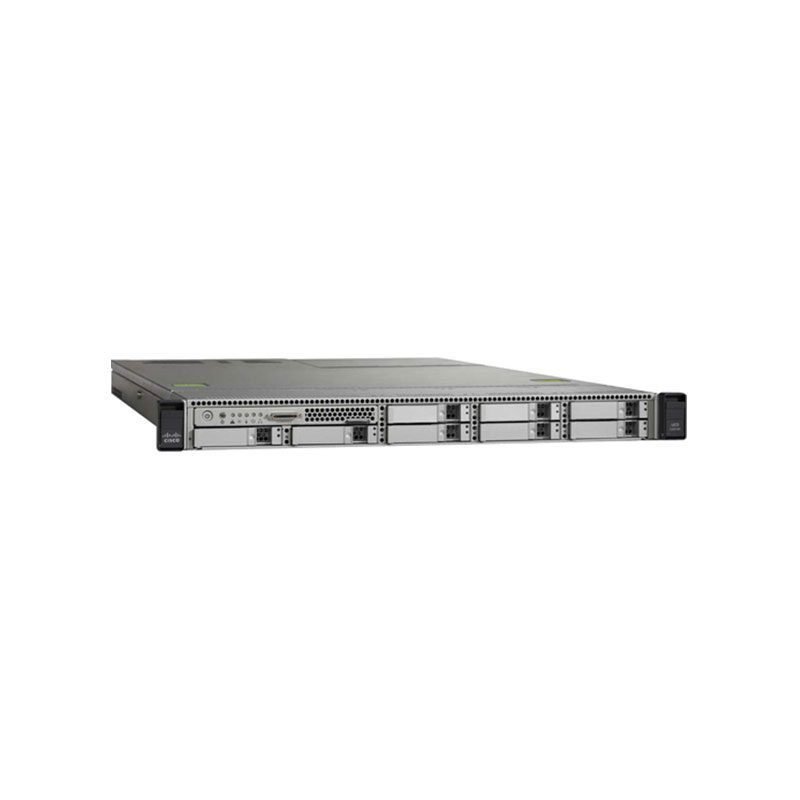

UCS-EZ7-C220-E Technical Specifications
Cisco UCS C220 SingleConnect Entry SmartPlay
Bay Provided
Form Factor: 2.5″
Free Qty: 8
Total Qty: 8 Bays
Cache Memory
Installed Size: 20 MB
Per Processor Size: 10 MB
Type: L3 cache
Chassis
Form Factor: Rack-mountable
Hot-Swap Bays Qty: 8
Manufacturer Form Factor: Rack-mountable
Server Storage Bays: Hot swap
Server Swappable Drive Form Factor: 2.5″
Server Swappable Drive Interface: SAS
Dimensions & Weight
Depth: 28.5 in
Height: 1.7 in
Weight: 22.05 lbs
Width: 16.9 in
Environmental Parameters
Humidity Range Operating: 10 – 90% (non-condensing)
Max Operating Temperature: 104 °F
Min Operating Temperature: 32 °F
Expansion Bays
Form Factor (metric): 6.4 cm
Type: Hot-swap
Expansion Slots
Size: Half-length
Type: PCIe 2.0 x8, PCIe 2.0 x16, CPU, Memory
Hard Drive
Type: No HDD
Header
Brand: Cisco
Compatibility: PC
Manufacturer: Cisco Unified Computing
Model: C220 SingleConnect Entry SmartPlay Expansion Pack
Packaged Quantity: 1
Product Line: Cisco UCS
Interface Provided
Qty: 1, Type: Serial
Qty: 2, Type: USB 2.0
Type: KVM, LAN (10 Gigabit Ethernet) (SFP+), LAN (Gigabit Ethernet), Management (NIC), VGA
Mainboard
Processor Socket: LGA2011 Socket
Miscellaneous
Color Category: Gray
Compliant Standards: AS/NZS 60950-1, BSMI CNS 13438 Class A, CISPR 22 Class A, EN 300 386, EN 60950-1, UL 60950-1
Networking
Compliant Standards: IEEE 802.1p, IEEE 802.1Q, IEEE 802.3ae
Data Link Protocol: 10 Gigabit Ethernet, FCoE, Ethernet
Power Device
Frequency Required: 50/60 Hz
Installed Qty: 2
Max Supported Qty: 2
Nominal Voltage: AC 120/230 V
Power Provided: 650 Watt
Processor
Clock Speed: 2.5 GHz
Installed Qty: 2
Manufacturer: Intel
Max Supported Qty: 2
Number of Cores: Quad-Core
Server Scalability: 2-way
RAM
Installed Size: 32 GB
Max Supported Size: 256 GB
Memory Speed: 1866 MHz
Storage Controller
Channel Qty: 8
Installed Qty: 1
Interface Type: Serial ATA-600 / SAS 2.0
RAID Level: RAID 0, RAID 1, RAID 10, RAID 5, RAID 50
