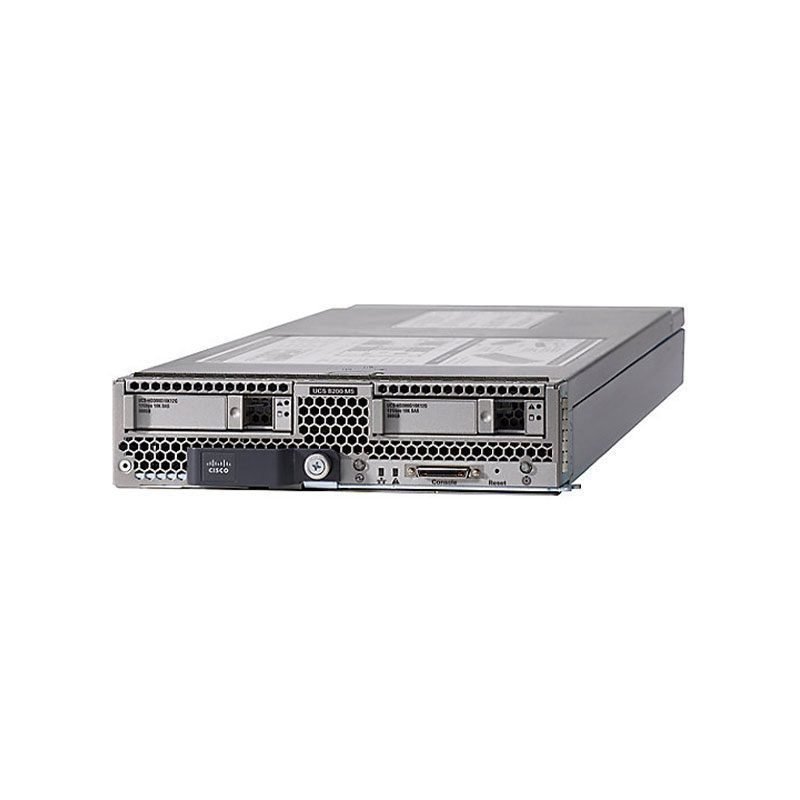

UCS-EZ8-B200M4-P Technical Specifications
Cisco UCS Smart Play 8 B200 M4 Performance
Bay Configuration
Form Factor: 2.5″ SFF
Free Qty: 2
Total Qty: 2 Bays
Cache Memory
Installed Size: 70 MB
Per Processor Size: 35 MB
Chassis Specifications
Form Factor: Blade
Hot-Swap Bays: 2
Manufacturer Form Factor: Blade Server
Drive Interface: SAS
Dimensions
Depth: 24.4 in
Height: 2 in
Width: 8 in
Environmental Conditions
Humidity Operating Range: 5 – 93% (non-condensing)
Max Operating Temperature: 95 °F
Min Operating Temperature: 50 °F
Expansion Options
Expansion Slots: CPU, DIMM 288-pin, SDHC Card (internal)
Hard Drive Details
Type: No HDD
Processor Specifications
Clock Speed: 2 GHz
Installed Qty: 2
Max Turbo Speed: 3 GHz
Cores: 14-core
Type: Xeon
RAM Configuration
Installed Size: 256 GB
Max Supported Size: 768 GB
Technology: DDR4 SDRAM
Memory Speed: 2133 MHz
Slots: 24 DDR4 Slots
Networking Features
Data Link Protocol: 10 Gigabit Ethernet, FCoE
Ethernet Ports: 4 x 10 Gigabit Ethernet
Remote Management: Cisco Integrated Management Controller.
