UCS-SP-B200M4-A3T Technical Specifications

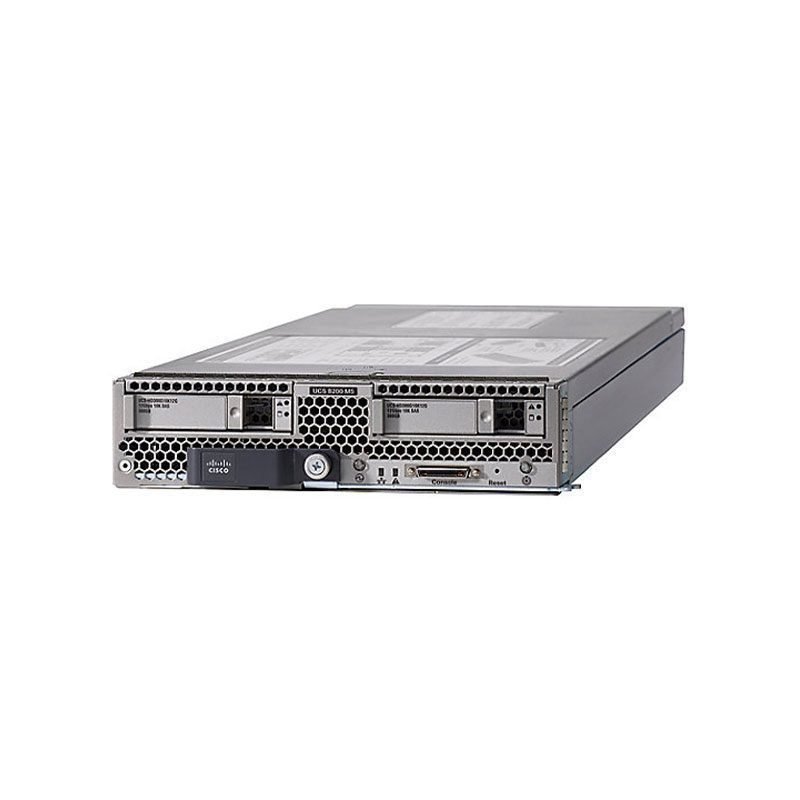

Cisco UCS SmartPlay Select B200 M4 Advanced
Bay Provided
Form Factor: 2.5″ SFF
Free Qty: 2
Total Qty: 2
Cache Memory
Installed Size: 60 MB
Per Processor Size: 30 MB
Chassis
Form Factor: Blade
Hot-Swap Bays Qty: 2
Manufacturer Form Factor: Blade Server
Server Storage Bays: Hot-swap
Server Swappable Drive Interface: SAS
Dimensions & Weight
Depth: 24.4 in
Height: 2 in
Width: 8 in
Environmental Parameters
Humidity Range Operating: 5 – 93% (non-condensing)
Max Operating Temperature: 95 °F
Min Operating Temperature: 50 °F
Networking
Data Link Protocol: 10 Gigabit Ethernet, 10Gb FCoE
Ethernet Ports: 4 x 10 Gigabit Ethernet
Remote Management Controller: Cisco Integrated Management Controller
Processor
Installed Qty: 2
Processor Number: E5-2670V3
Max Turbo Speed: 3.1 GHz
Number of Cores: 12-core
Server Scalability: 2-way
RAM
Installed Size: 256 GB
Max Supported Size: 768 GB
Slots Qty: 24 DDR4 Slots
Technology: DDR4 SDRAM
