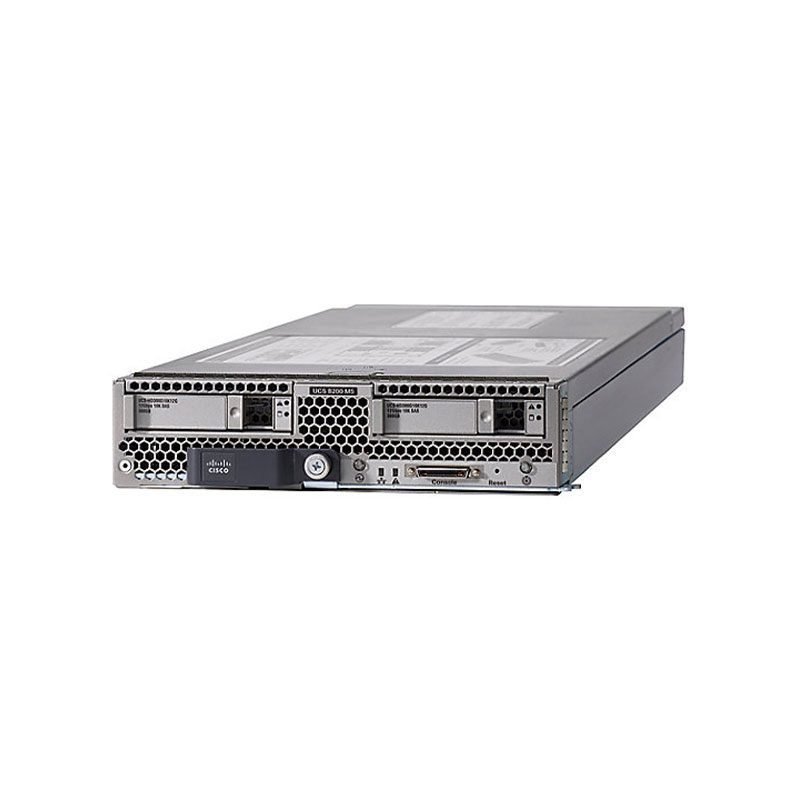

UCS-SP-B200M4-B-C2 Technical Specifications
Cisco UCS SmartPlay Select B200 M4 High Core 2
Bay Provided
Form Factor: 2.5″ SFF
Free Qty: 2
Total Qty: 2 Bays
Cache Memory
Installed Size: 90 MB
Per Processor Size: 45 MB
Chassis
Form Factor: Blade
Hot-Swap Bays Qty: 2 Bays
Server Storage Bays: Hot swap
Server Swappable Drive Interface: SAS
Dimensions & Weight
Depth: 24.4 in
Height: 2 in
Width: 8 in
Environmental Parameters
Operating Humidity: 5 – 93% (non-condensing)
Max Operating Temperature: 95 °F
Min Operating Temperature: 50 °F
Expansion Bays
Type: Hot-swap
Expansion Slots
Types: CPU, DIMM 288-pin, Expansion slot, SDHC Card (internal)
Hard Drive
Type: No HDD
Header
Brand: Cisco
Model: SmartPlay Select B200 M4 High Core 2 (Not sold Standalone)
Packaged Quantity: 1
Interface Provided
Location: 1 internal
Type: USB 2.0, KVM, VGA
Mainboard
Chipset Type: Intel C612
Processor Socket: LGA2011-v3 Socket
Miscellaneous
Color Category: Gray
Included Accessories: 2 x CPU Heatsink, 2 x drive blanking panels
Networking
Data Link Protocol: 10 Gigabit Ethernet, 10Gb FCoE
Ethernet Ports: 4 x 10 Gigabit Ethernet
Processor
Clock Speed: 2.3 GHz
Installed Qty: 2
Number of Cores: 18-core
Processor Number: E5-2697V4
RAM
Installed Size: 256 GB
Max Supported Size: 768 GB
Memory Speed: 2400 MHz
Slots Qty: 24 DDR4 Slots
Technology: DDR4 SDRAM
