UCS-SP-B200M4-B-S1 Technical Specifications

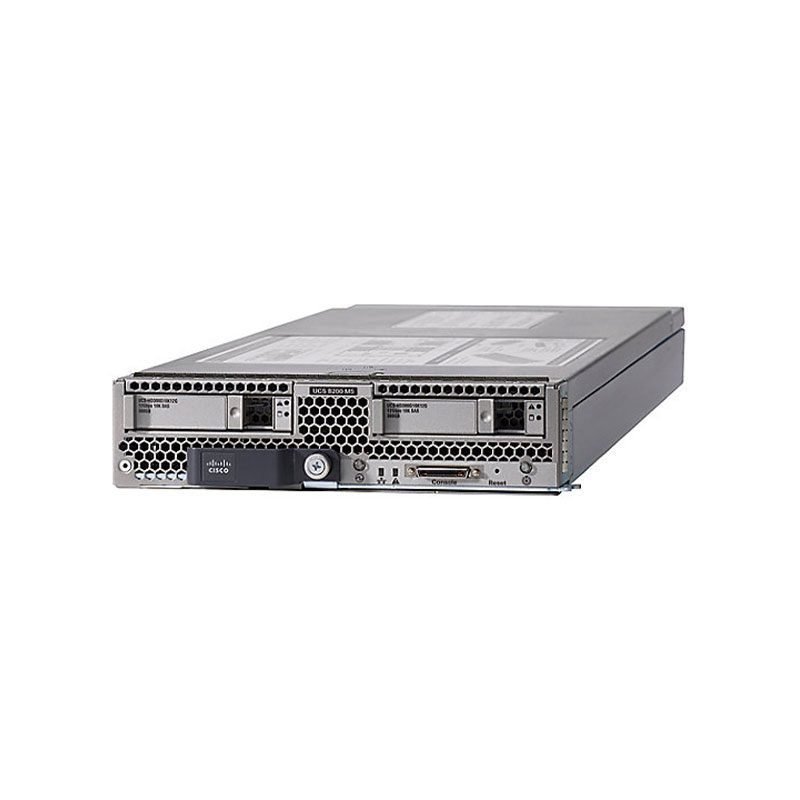

Cisco UCS SmartPlay Select B200 M4 Standard 1
Bay Configuration
Form Factor: 2.5″ SFF
Free Quantity: 2
Total Quantity: 2 Bays
Cache Memory
Installed Size: 40 MB
Per Processor Size: 20 MB
Chassis Details
Form Factor: Blade
Hot-Swap Bays Quantity: 2
Manufacturer Form Factor: Blade Server
Swappable Drive Interface: SATA/SAS
Dimensions & Weight
Depth: 24.4 in
Height: 2 in
Width: 8 in
Environmental Conditions
Operating Humidity Range: 5 – 93% (non-condensing)
Max Operating Temperature: 95 °F
Min Operating Temperature: 50 °F
Expansion Features
Form Factor (metric): 6.4 cm SFF
Expansion Slots: CPU, DIMM 288-pin, SDHC Card (internal)
Processor Information
Clock Speed: 2.2 GHz
Installed Quantity: 2
Processor Type: Intel Xeon E5-2630V4, 10-core
Max Turbo Speed: 3.1 GHz
Memory Specifications
Installed Size: 128 GB
Max Supported Size: 1536 GB
Configuration: 8 x 16 GB, ECC
Networking Capabilities
Ethernet Controller: Cisco UCS Virtual Interface Card 1340
Ports: 4 x 10 Gigabit Ethernet
Remote Management: Cisco Integrated Management Controller
Included Accessories
2 x CPU Heatsink, 2 x drive blanking panels.
