UCS-SP-C220M5-A2 Technical Specifications

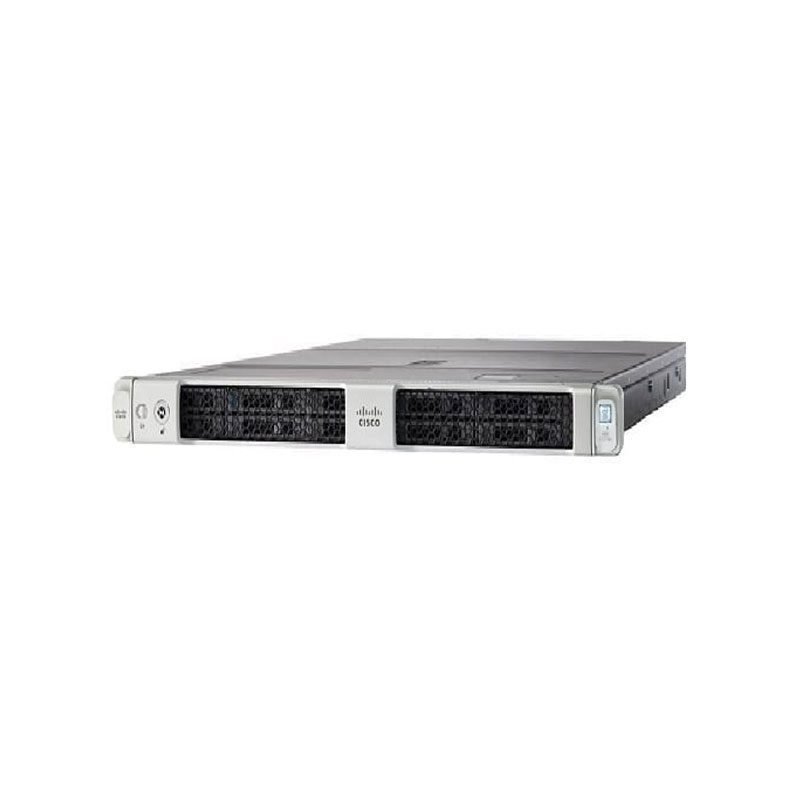

Cisco UCS SmartPlay Select C220 M5 Standard
Bay Configuration
Form Factor: 2.5″ SFF
Quantity Available: 10
Total Bays: 10
Cache Memory
Installed Size: 38.5 MB
Per Processor Size: 19.25 MB
Type: L3 cache
Card Reader
Supported Flash Memory: SD Memory Card
Chassis
Form Factor: Rack-mountable
Front Accessible Bays: 10
Hot-Swap Bays: 10
Drive Interface: SATA/SAS
Dimensions & Weight
Depth: 29.8 in
Height: 1.7 in
Width: 16.9 in
Environmental Parameters
Operating Humidity: 10 – 90% (non-condensing)
Max Operating Temperature: 95 °F
Min Operating Temperature: 41 °F
Expansion Slots
Size: Half-length, half-height; Type: PCIe 3.0 x24
Size: Three-quarter-length, full-height; Type: mLOM
Hard Drive
Type: No HDD
Header
Brand: Cisco
Manufacturer: Cisco Unified Computing
Model: SmartPlay Select C220 M5 Standard 2
Packaged Quantity: 1
Product Line: Cisco UCS
Interface Provided
Connector Type: DB-15, Location: 1 rear, Qty: 1, Type: VGA
Connector Type: QSFP, Type: 40Gb FCoE
Connector Type: RJ-45, Type: Serial, Location: 1 front, Type: KVM, Location: 2 rear, Qty: 2
