UCS-SP-C220M5-S3 Technical Specifications

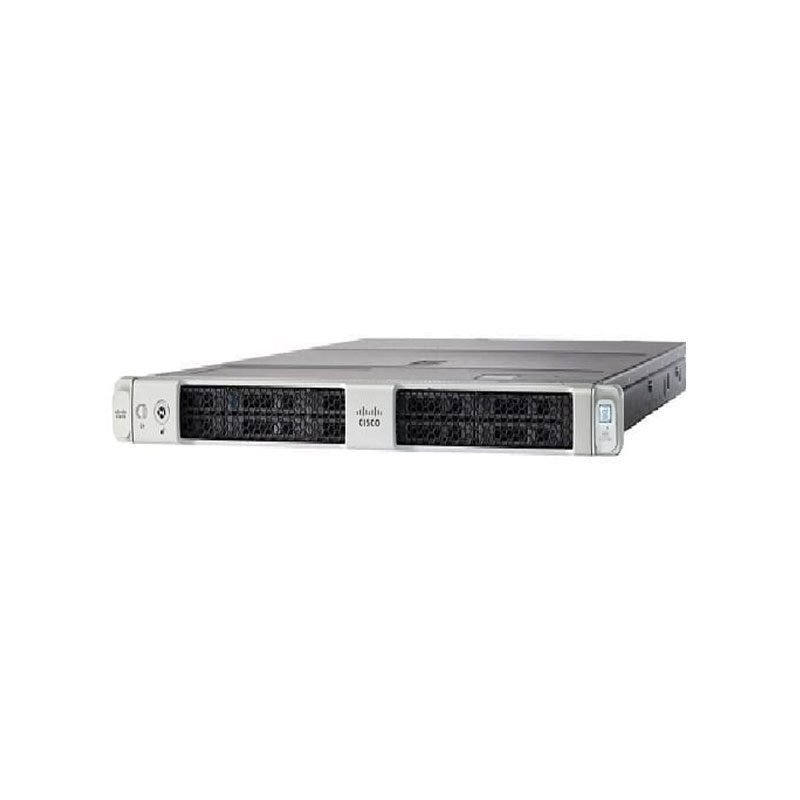

Cisco Systems SP C220 M5SX 2X4110 4X16GB
General Information
Product Name: SP C220 M5SX 2X4110 4X16GB Memory (Single Rank)
Manufacturer Part Number: UCS-SP-C220M5-S3
Product Series: C220 M5
Product Type: Server
Cisco UCS
Controllers
Controller Type: 12Gb/s SAS
RAID Supported: Yes
RAID Levels: 0, 1, 5, 6, 10, 50, 60, JBOD
Display & Graphics
Graphics Controller Manufacturer: ASPEED
Graphics Controller Model: Pilot 4
Graphics Memory Capacity: Up to 16 MB
I/O Expansions
Total Expansion Bays: 10
Internal 2.5″ Bays: 10
Hot Swap Bays: Yes
Memory
Standard Memory: 64 GB
Maximum Memory: 3 TB
Memory Technology: DDR4 SDRAM
Total Memory Slots: 24 DDR4 Slots
Occupied Memory Slots: 4
Network & Communication
Ethernet Technology: 10 Gigabit Ethernet
Power Description
Supported Power Supplies: 2
Processor & Chipset
Supported Processors: 2
Installed Processors: 2
Processor Manufacturer: Intel
Processor Type: Xeon Silver
Processor Model: 4110
Processor Cores: Octa-core (8 Core)
Processor Speed: 2.10 GHz
Physical Characteristics
Form Factor: Rack
Rack Height: 1U Rack Mount
Dimensions: Height 1.7″, Width 19″, Depth 31″
