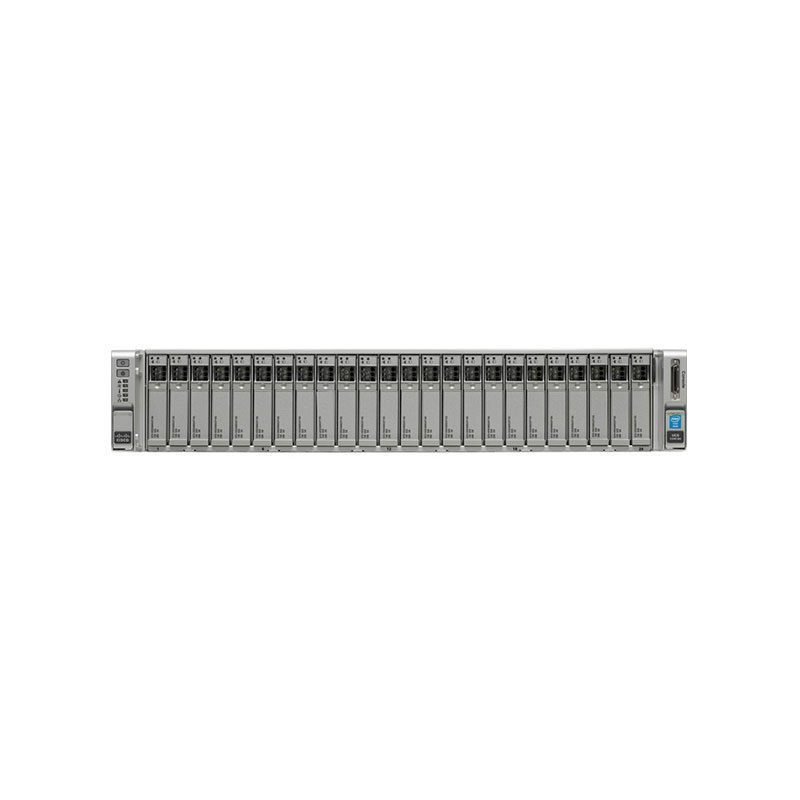

UCS-SP-C240M4-B-S2 Technical Specifications
Cisco UCS SmartPlay Select C240 M4SX Standard
Bay Configuration
Form Factor: 2.5″ SFF
Total Bays: 24 (16 free)
Chassis Features
Built-in Devices: Backplane
Cache Memory
Installed Size: 40 MB (L3 cache)
Chassis Design
Rack-mountable with 24 hot-swap bays for 2.5″ drives (SATA/SAS)
Dimensions
Depth: 29.1 in, Height: 3.4 in, Width: 17.6 in
Environmental Parameters
Operating Humidity: 10 – 90% (non-condensing)
Operating Temperature: 41 °F to 95 °F
Expansion Options
Supports various expansion slots including DIMM and PCIe types.
Networking Capabilities
Data Link Protocols: FCoE, Ethernet, and Gigabit Ethernet with multiple ports.
Power Supply
1400 Watt with redundancy (1+1) and hot-plug capability.
Processor Configuration
Dual Intel Xeon E5-2620V4 processors with 8 cores each, clocking at 2.1 GHz, upgradable to 3 GHz turbo speed.
Memory
Configured with 128 GB RAM (8 x 16 GB), expandable up to 768 GB, supporting DDR4 SDRAM technology.
