UCS-SP-C240M5-S3 Technical Specifications

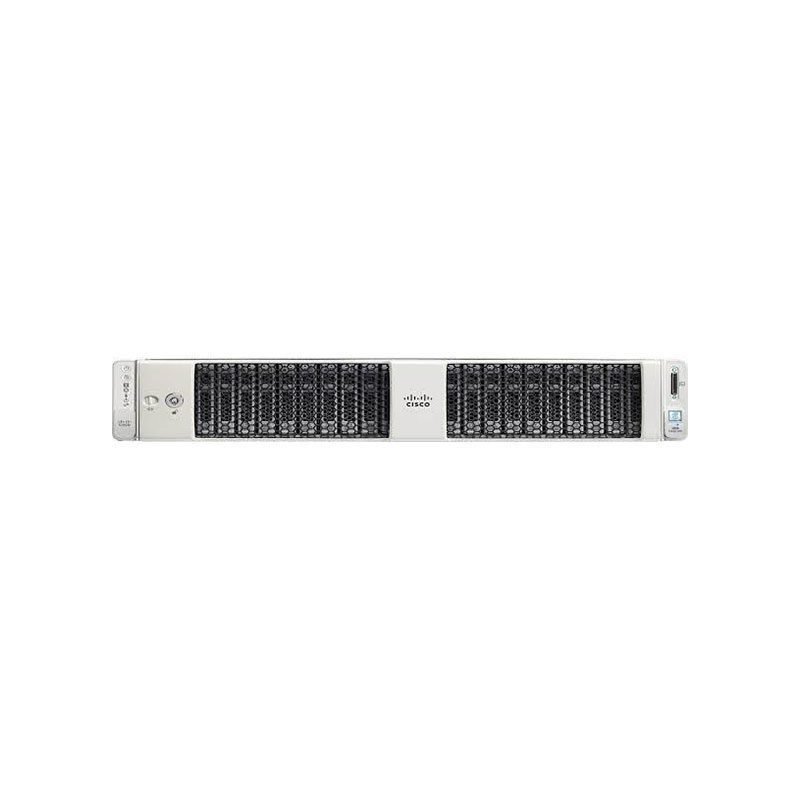

Cisco Systems SP C240 M5SX 2X4110 6X16GB
General Information
Product Name: SP C240 M5SX 2X4110 6X16GB Memory Single Rank
Manufacturer Part Number: UCS-SP-C240M5-S3
Product Series: C240 M5
Product Type: Server
Cisco UCS
Controllers
Controller Type: 12Gb/s SAS
RAID Supported: Yes
RAID Levels: 0, 1, 5, 6, 10, 50, 60, JBOD
Display & Graphics
Graphics Controller Manufacturer: ASPEED
Graphics Controller Model: Pilot 4
Graphics Memory Capacity: Up to 16 MB
I/O Expansions
Total Expansion Bays: 26
Internal 2.5″ Bays: 26
Hot Swappable Bays: Yes
Memory
Standard Memory: 96 GB
Maximum Memory: 9 TB
Memory Technology: DDR4 SDRAM
Total Memory Slots: 24 DDR4 Slots
Occupied Memory Slots: 6
Intel Optane Memory Ready: Yes
Network & Communication
Ethernet Technology: 10 Gigabit Ethernet
Power Description
Input Voltage: 120 V AC, 230 V AC
Power Supplies Supported: 2
Power Supplies Installed: 2
Maximum Power Supply Wattage: 1600 W
Redundant Power Supply: Yes
Storage
Total Hard Drive Capacity: Not Specified
Optical Drive Type: None
Processor & Chipset
Processors Supported: 2
Processors Installed: 2
Processor Manufacturer: Intel
Processor Type: Xeon Silver
Processor Model: 4110
Processor Core: Octa-core (8 Core)
Processor Speed: 2.10 GHz
Software
