UCS-SP-MINI-AC2 Technical Specifications

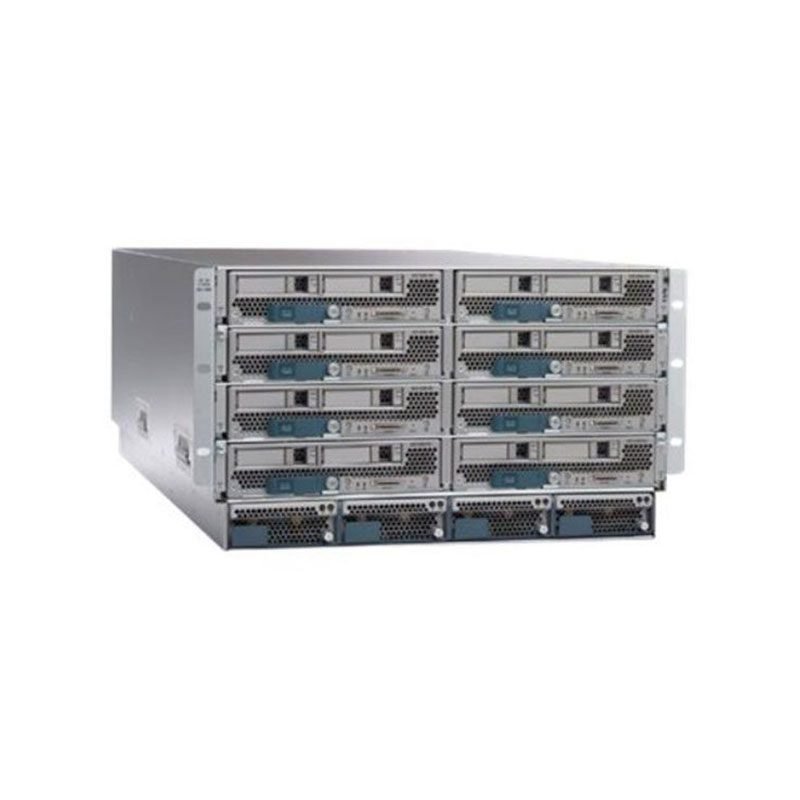

Cisco UCS Mini Smart Play Select 5108 Blade Server
Chassis
Form Factor: Rack-mountable
Supported Blades Quantity: 8
Cooling System
Type: Fan
Features: Hot-swap
Quantity: 8
Dimensions & Weight
Depth: 32 inches
Height: 10.5 inches
Width: 17.5 inches
Environmental Parameters
Operating Humidity Range: 5 – 93% (non-condensing)
Maximum Operating Temperature: 95 °F
Minimum Operating Temperature: 50 °F
Header
Brand: Cisco
Manufacturer: Cisco Unified Computing
Model: UCS 5108 Blade Server Chassis (Not sold Standalone)
Packaged Quantity: 1
Product Line: Cisco UCS Mini Smart Play Select
Miscellaneous
Color Category: Gray
Compliant Standards: AS/NZS 60950-1, AS/NZS CISPR 22, CAN/CSA-C22.2 No. 60950-1, CISPR 22 Class A, CISPR 24, CNS 13438(95) Class A, EN 300386, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN50082-1, EN55022 Class A, EN55024, FCC CFR47 Part 15, GB 4943.1, ICES-003 Class A, IEC 60950-1, KN22 Class A, UL 60950-1, VCCI Class A
Height (Rack Units): 6
Power Device
Frequency Required: 50 – 60 Hz
Maximum Supported Quantity: 4
Nominal Voltage: AC 120/230 V
Power Provided: 2500 Watt
Power Redundancy: Yes
Power Redundancy Scheme: N+1
Type: Power supply – hot-plug
