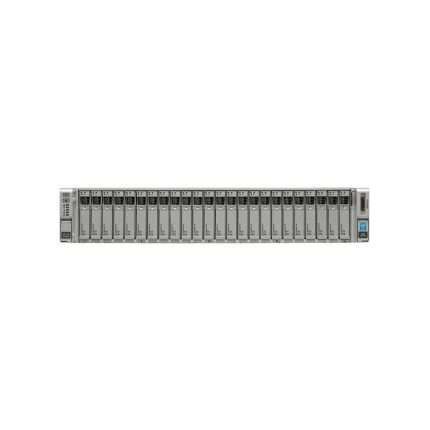

UCS-SP6-C240P Technical Specifications
Cisco UCS C240 M3 Performance Edition
Bay Configuration
Form Factor: 2.5″
Free Quantity: 24
Total Bays: 24
Cache Memory
Installed Size: 40 MB
Per Processor Size: 20 MB
Type: L3 Cache
Chassis
Form Factor: Rack-mountable
Hot-Swap Bays: 24
Swappable Drive Form Factor: 2.5″ (6.4 cm)
Drive Interface: SAS
Dimensions & Weight
Depth: 28 in
Height: 3.4 in
Width: 17.5 in
Environmental Parameters
Operating Humidity: 10 – 90% (non-condensing)
Max Operating Temperature: 104 °F
Min Operating Temperature: 32 °F
Expansion Bays
Type: Hot-swap
Expansion Slots
Size: Half-length, full-height, three-quarter-length, full-height
Type: PCIe 3.0 x16, CPU, DIMM 240-pin, PCIe 3.0 x8
Header
Brand: Cisco
Model: C240 M3 Performance Edition
Product Line: Cisco UCS
Interface Provided
Qty: 1 Serial, 2 USB 2.0, 4 LAN (Gigabit Ethernet), KVM, 2 LAN (10 Gigabit Ethernet) (SFP+), Management (NIC), VGA
Mainboard
Chipset: Intel C600
Processor Socket: LGA2011
Miscellaneous
Color: Gray
Compliant Standards: AS/NZS 60950-1, BSMI CNS 13438 Class A, and others
Height: 2U Rack Mount
Included Accessories: 2 x CPU Heatsink, Rack rail kit
Networking
Data Link Protocol: 10 Gigabit Ethernet, FCoE, Ethernet
Ethernet Controller: Cisco UCS Virtual Interface Card 1225
Ethernet Ports: 4 x Gigabit Ethernet, 2 x SFP+
Remote Management Protocol: CLI, IPMI 2.0
