UCS-SPL-B200M4-C2 Technical Specifications

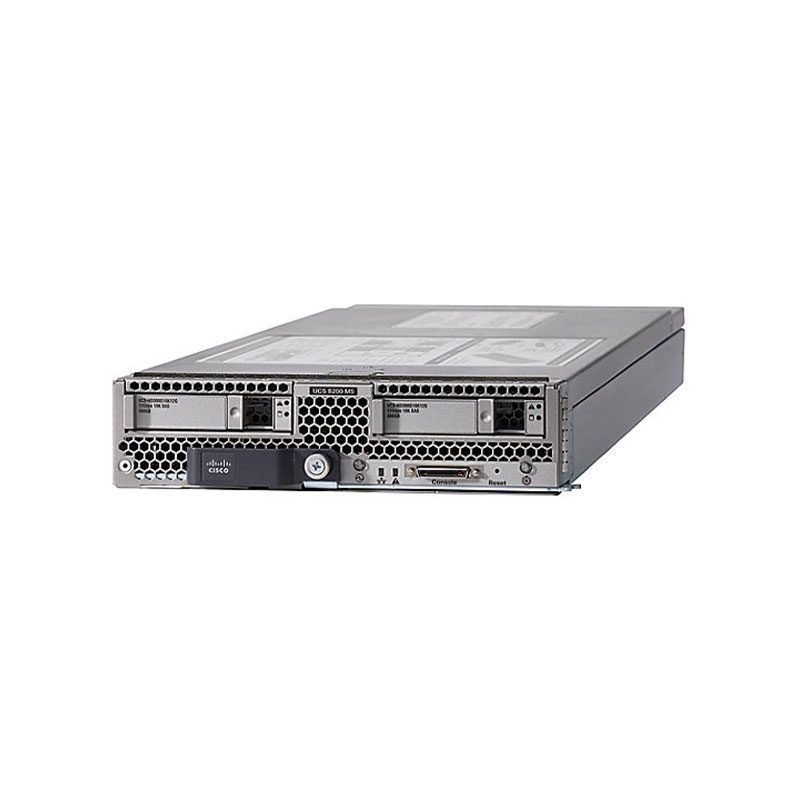

Cisco Systems UCS SP Select B200M4 CORE2
General Information
Product Name: UCS SP Select B200M4 CORE2 FD
Manufacturer Part Number: UCS-SPL-B200M4-C2
Product Series: B200 M4
Product Type: Server
Cisco UCS
Controllers
Controller Type: 12Gb/s SAS
RAID Supported: Yes
RAID Levels: 0, 1
Memory
Standard Memory: 256 GB
Maximum Memory: 768 GB
Memory Technology: DDR4 SDRAM
Total Memory Slots: 24 DDR4 Slots
Network & Communication
Ethernet Technology: 40 Gigabit Ethernet
Processor & Chipset
Supported Processors: 2
Installed Processors: 2
Processor Manufacturer: Intel
Processor Type: Xeon
Processor Model: E5-2697 v3
Processor Cores: Tetradeca-core (14 Core)
Processor Speed: 2.60 GHz
Physical Characteristics
Form Factor: Blade
Other Information
Product Family: B200 M4
Cache: 35 MB
Memory Card Reader: Yes
64-bit Processing: Yes
QuickPath Interconnect: 9.60 GT/s
Hyper-Threading: Yes
Total Expansion Slots: 2
Network (RJ-45): Yes
Maximum Turbo Speed: 3.60 GHz
Supported Memory Cards: SD, SDHC
Memory Standard: DDR4-2133/PC4-17000
