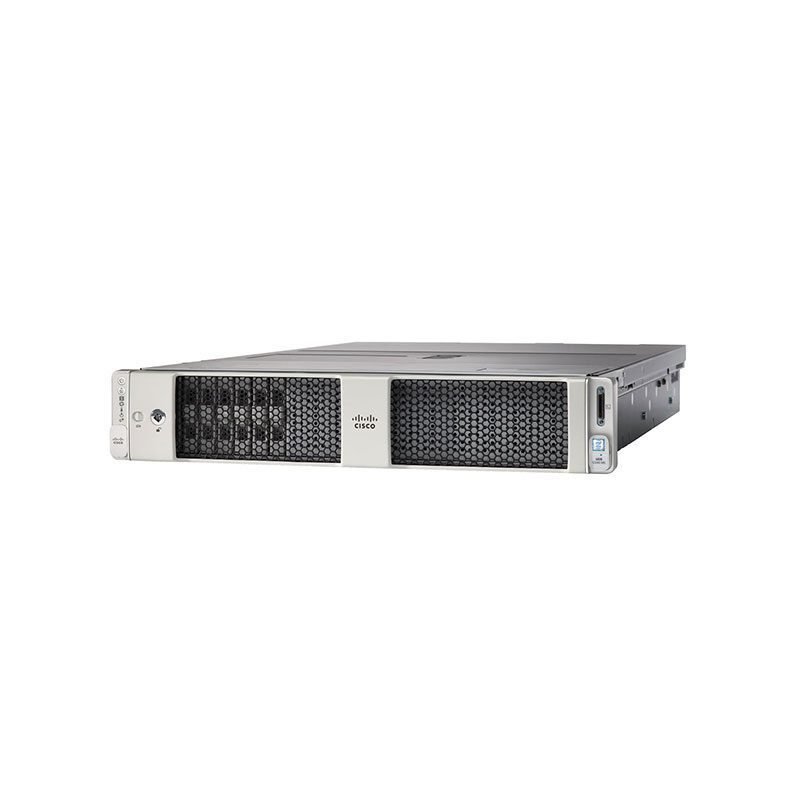

UCS-SPR-C240M5-A1 Technical Specifications
Cisco Systems SP C240 M5SX 1X5120 1X32GB
General Information
Product Name: SP C240 M5SX 1X5120 1X32GB Memory 12G Mraid
Manufacturer Part Number: UCS-SPR-C240M5-A1
Product Series: C240 M5
Product Type: Server
Controllers
Controller Type: 12Gb/s SAS
RAID Supported: Yes
Display & Graphics
Graphics Controller Manufacturer: ASPEED
Graphics Controller Model: Pilot 4
Graphics Memory Capacity: Up to 16 MB
I/O Expansions
Total Expansion Bays: 10
Internal 2.5″ Bays: 10
Hot Swappable Bays: Yes
Memory
Standard Memory: 32 GB
Maximum Memory Capacity: 3 TB
Memory Technology: DDR4 SDRAM
Total Memory Slots: 24 DDR4 Slots
Occupied Memory Slots: 1
Network & Communication
Ethernet Technology: 10 Gigabit Ethernet
Power Description
Supported Power Supplies: 2
Processor & Chipset
Supported Processors: 2
Installed Processors: 1
Processor Manufacturer: Intel
Processor Type: Xeon Gold
Processor Model: 5120
Processor Cores: Tetradeca-core (14 Core)
Processor Speed: 2.20 GHz
Physical Characteristics
Form Factor: Rack-mountable
Rack Height: 2U Rack Mount
Dimensions: Height 3.4″, Width 19″, Depth 30.2″
