UCS-SPR-C240M5-S1 Technical Specifications

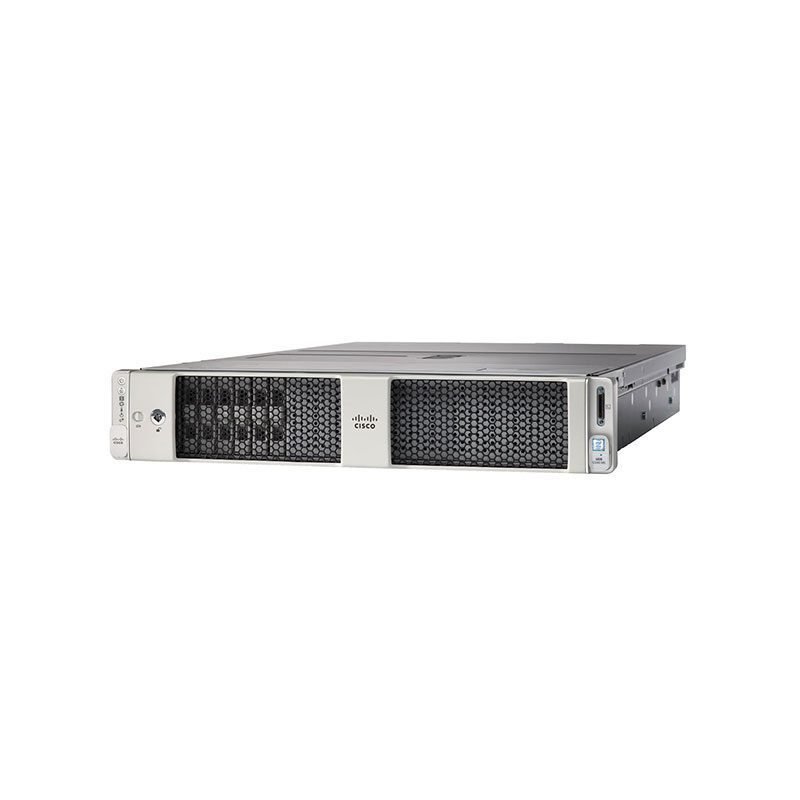

Cisco Systems SP C240 M5SX 1X4110
General Information
The SP C240 M5SX 1X4110 server features a powerful 1X16GB memory configuration and a 12G Mraid controller. Its Manufacturer Part Number is UCS-SPR-C240M5-S1, and it belongs to the C240 M5 series, classified as a server type.
Controllers
Equipped with a 12Gb/s SAS controller, it supports RAID configurations for enhanced data security.
Display & Graphics
The server incorporates an ASPEED graphics controller, specifically the Pilot 4 model, with a memory capacity of up to 16 MB.
I/O Expansions
It offers 10 total expansion bays, including 10 internal 2.5″ hot-swap bays, ensuring flexibility in storage options.
Memory
The standard memory is 16 GB, expandable to a maximum of 3 TB utilizing DDR4 SDRAM across 24 slots, with only 1 slot currently occupied.
Network & Communication
It supports 10 Gigabit Ethernet technology, ensuring fast and reliable networking.
Power Description
This server supports two power supplies for redundancy.
Processor & Chipset
Designed to support up to 2 processors, it currently has 1 Intel Xeon Silver 4110 processor installed, featuring 8 cores and operating at a speed of 2.10 GHz.
Physical Characteristics
The server is rack-mountable, occupying a 2U rack height, with dimensions of 3.4″ in height, 19″ in width, and 30.2″ in depth.
