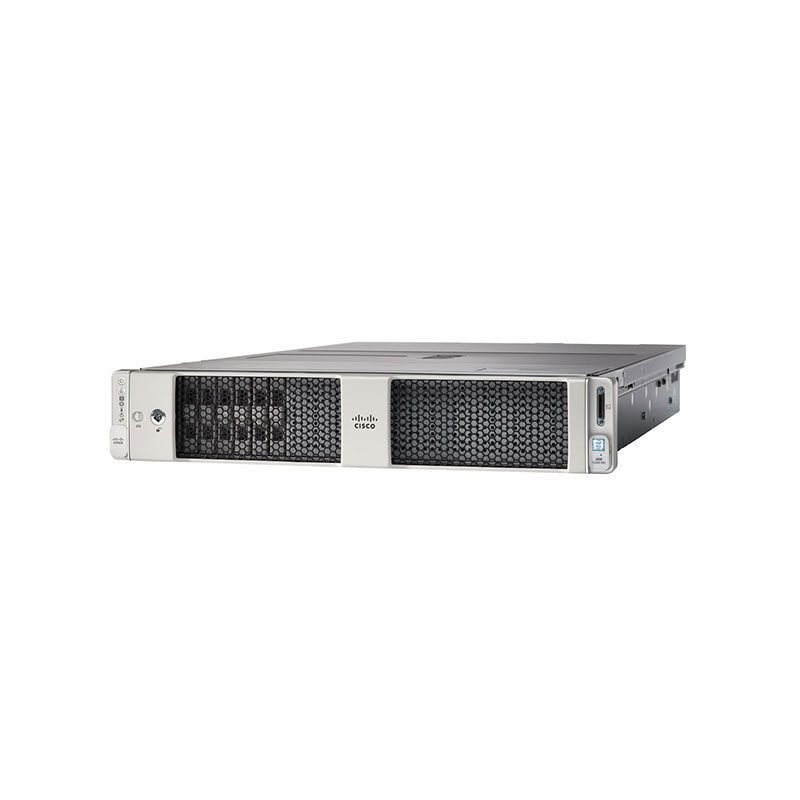

UCS-SPR-C240M5-S4 Technical Specifications
Cisco Systems SP C240 M5SX 1X4110 1X16GB
General Information
Product Name: SP C240 M5SX 1X4110 with 1X16GB Memory (Single Rank)
Manufacturer Part Number: UCS-SPR-C240M5-S4
Product Series: C240 M5
Product Type: Server
Controllers
Controller Type: 12Gb/s SAS
RAID Support: Yes
RAID Levels Supported: 0, 1, 5, 6, 10, 50, 60, JBOD
Display & Graphics
Graphics Controller Manufacturer: ASPEED
Graphics Controller Model: Pilot 4
Graphics Memory Capacity: Up to 16 MB
I/O Expansions
Total Expansion Bays: 26
Internal 2.5″ Bays: 26
Hot Swap Bays: Yes
Memory
Standard Memory: 16 GB
Maximum Memory: 3 TB
Memory Technology: DDR4 SDRAM
Total Memory Slots: 24 DDR4 Slots
Occupied Memory Slots: 1
Network & Communication
Ethernet Technology: 10 Gigabit Ethernet
Power Description
Input Voltage: 120 V AC, 230 V AC
Supported Power Supplies: 2
Installed Power Supplies: 2
Maximum Power Supply Wattage: 1100 W
Redundant Power Supply: Yes
Processor & Chipset
Supported Processors: 2
Installed Processors: 1
Processor Manufacturer: Intel
Processor Type: Xeon Silver
Processor Model: 4110
Processor Cores: Octa-core (8 Core)
Processor Speed: 2.10 GHz
