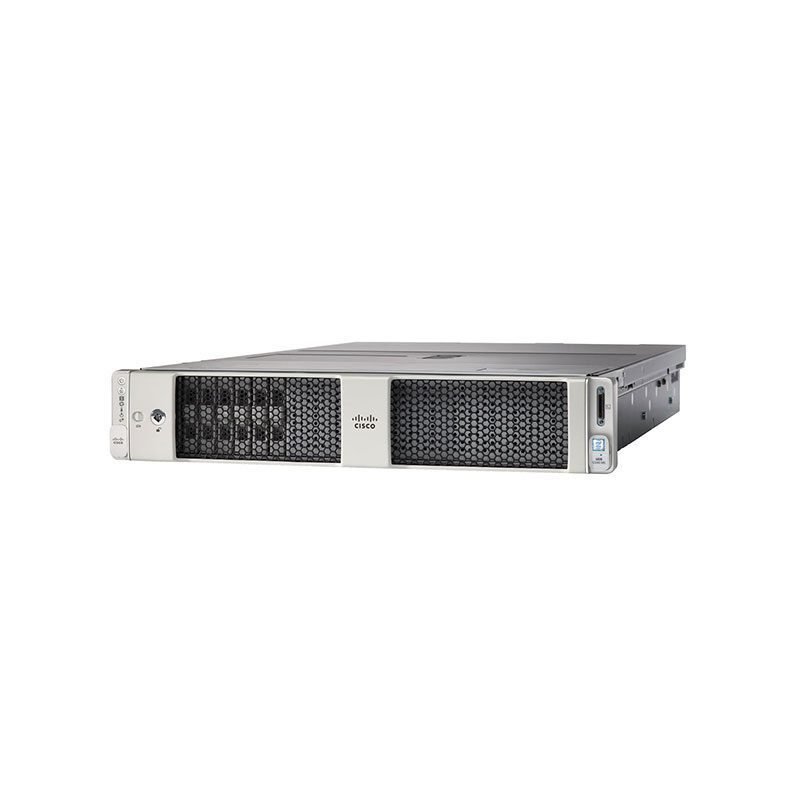

UCS-SPR-C240M5-S6 Technical Specifications
Cisco Systems SP C240 M5SX 2X4114 2X16GB
General Information
Product Name: SP C240 M5SX 2X4114 2X16GB Memory, Single Rank
Manufacturer Part Number: UCS-SPR-C240M5-S6
Product Series: C240 M5
Product Type: Server
Controllers
Controller Type: 12Gb/s SAS
RAID Supported: Yes
RAID Levels: 0, 1, 5, 6, 10, 50, 60, JBOD
Display & Graphics
Graphics Controller Manufacturer: ASPEED
Graphics Controller Model: Pilot 4
Graphics Memory Capacity: Up to 16 MB
I/O Expansions
Total Expansion Bays: 26
Internal 2.5″ Bays: 26
Hot Swap Bays: Yes
Memory
Standard Memory: 32 GB
Maximum Memory: 3 TB
Memory Technology: DDR4 SDRAM
Total Memory Slots: 24 DDR4 Slots
Occupied Memory Slots: 2
Network & Communication
Ethernet Technology: 10 Gigabit Ethernet
Power Description
Supported Power Supplies: 2
Installed Power Supplies: 2
Maximum Power Supply Wattage: 1050 W
Redundant Power Supply: Yes
Storage
Total Hard Drive Capacity: None
Optical Drive Type: None
Processor & Chipset
Supported Processors: 2
Installed Processors: 2
Processor Manufacturer: Intel
Processor Type: Xeon Silver
Processor Model: 4114
Processor Cores: Deca-core (10 Core)
Processor Speed: 2.20 GHz
