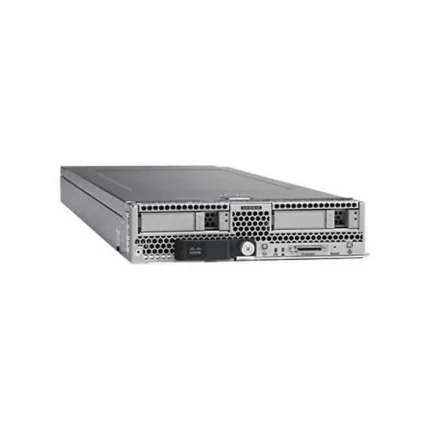

UCS-SR-B200M4-S Cisco UCS B200 M4 Blade Server – Intel Xeon E5-2609V3 1.9 GHz
UCS-SR-B200M4-S Overview
The Cisco UCS-SR-B200M4-S UCS B200 M4 Blade Server is a half-width enterprise blade server designed for Cisco UCS data center environments. This configuration features an Intel Xeon E5-2609 v3 processor with 6 cores, a 1.90GHz clock speed, 15MB cache, and 85W TDP. The B200 M4 provides 24 DDR4 DIMM slots, supports up to two Intel Xeon E5-2600 v3/v4 processors, and can accommodate up to two optional hot-plug SAS, SATA, or PCIe NVMe drives. The UCS-SR-B200M4-S is suitable for virtualization, databases, cloud computing, web infrastructure, and enterprise applications.
11,472.42 AED
Description
| Specification | Details |
|---|---|
| Brand | Cisco |
| Part Number | UCS-SR-B200M4-S |
| Product | UCS B200 M4 Blade Server |
| Form Factor | Half-Width Blade |
| Processor | Intel Xeon E5-2609 v3 |
| CPU Cores | 6 |
| CPU Frequency | 1.90GHz |
| Cache | 15MB |
| TDP | 85W |
| Memory Slots | 24 × DDR4 DIMM |
| Maximum Memory | Up to 1.5TB |
| Processor Support | Up to 2 × Intel Xeon E5-2600 v3/v4 |
| Storage | Up to 2 × optional hot-plug drives |
| Storage Interfaces | SAS, SATA, PCIe NVMe |
| Management | Cisco UCS Manager |
| Application | Data Center / Enterprise |
Frequently Asked Questions
1. What is the Cisco UCS-SR-B200M4-S?
The UCS-SR-B200M4-S Cisco UCS B200 M4 half-width blade server configured with an Intel Xeon E5-2609 v3 processor and designed for Cisco UCS data center environments.
2. What processor does the UCS-SR-B200M4-S use?
This configuration uses the Intel Xeon E5-2609 v3, which provides 6 cores, a 1.90GHz operating frequency, 15MB cache, and an 85W thermal design power rating.
3. How much memory can the Cisco B200 M4 support?
The B200 M4 provides 24 DDR4 DIMM slots and supports up to 1.5TB of memory when configured with supported 64GB DIMMs and two processors. It supports registered ECC and load-reduced DIMMs.
4. Can the Cisco UCS B200 M4 support two processors?
Yes. The B200 M4 supports one or two Intel Xeon E5-2600 v3 or v4 series processors. For a dual-CPU configuration, the processors must follow Cisco’s supported configuration requirements.
5. What storage options are available on this blade server?
The server supports up to two optional hot-plug drives, with supported storage options including SAS, SATA, and PCIe NVMe drives depending on the installed storage configuration.
