UCS-VDI-C240M4-K1 Technical Specifications

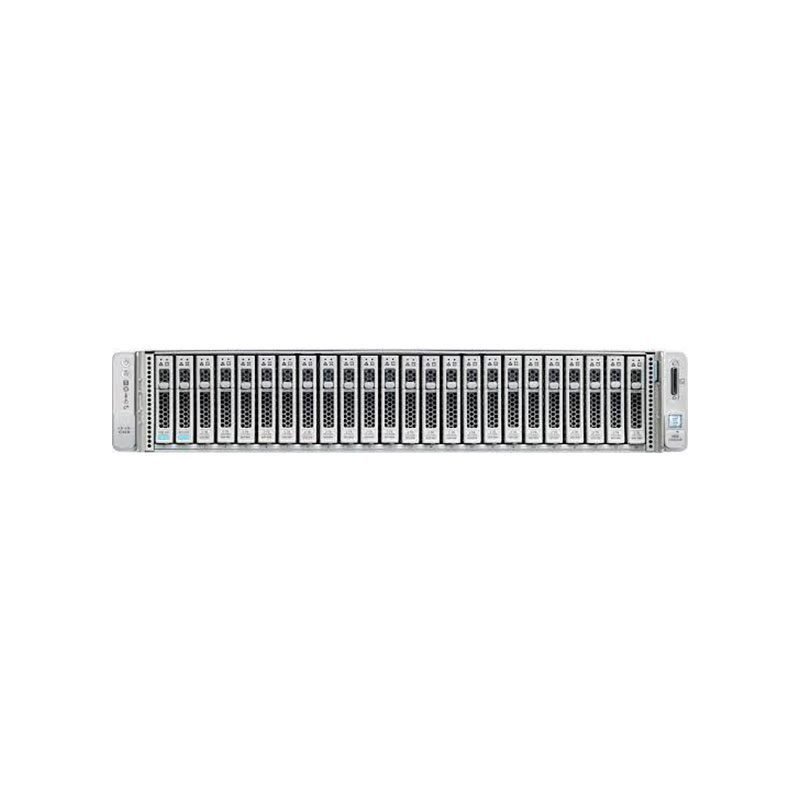

Cisco Systems UCS VDI C240 M4 SX
General Information
Product Name: UCS VDI C240 M4 SX featuring 2XE52667 V3 and 256GB of memory.
Manufacturer Part Number: UCS-VDI-C240M4-K1.
Product Series: C240 M4.
Product Type: Server, part of the Cisco UCS line.
Controllers
Controller Type: Serial SATA.
RAID Support: Yes, with RAID Levels 0, 1, and 10.
Display & Graphics
Graphics Controller Manufacturer: Matrox.
Model: G200e, with a Graphics Memory Capacity of up to 8 MB.
Memory
Standard Memory: 256 GB, expandable to a maximum of 1.50 TB.
Memory Technology: DDR4 SDRAM, with 24 DDR4 RAM slots available.
Network & Communication
Ethernet Technology: 10 Gigabit Ethernet.
Power Description: Input Voltage options include 120 V AC and 230 V AC.
Processor & Chipset
Supported Processors: 2, with 2 installed.
Processor Manufacturer: Intel, featuring Intel Xeon technology.
Processor Model: E5-2667v3, with an Octa-core (8 Core) configuration and a speed of 3.20 GHz.
Physical Characteristics
Form Factor: Rack, designed for 2U rack mount.
Dimensions: Height 3.4″, Width 19″, Depth 30.2″.
