UCS-VDI-C240M4-K2 Technical Specifications

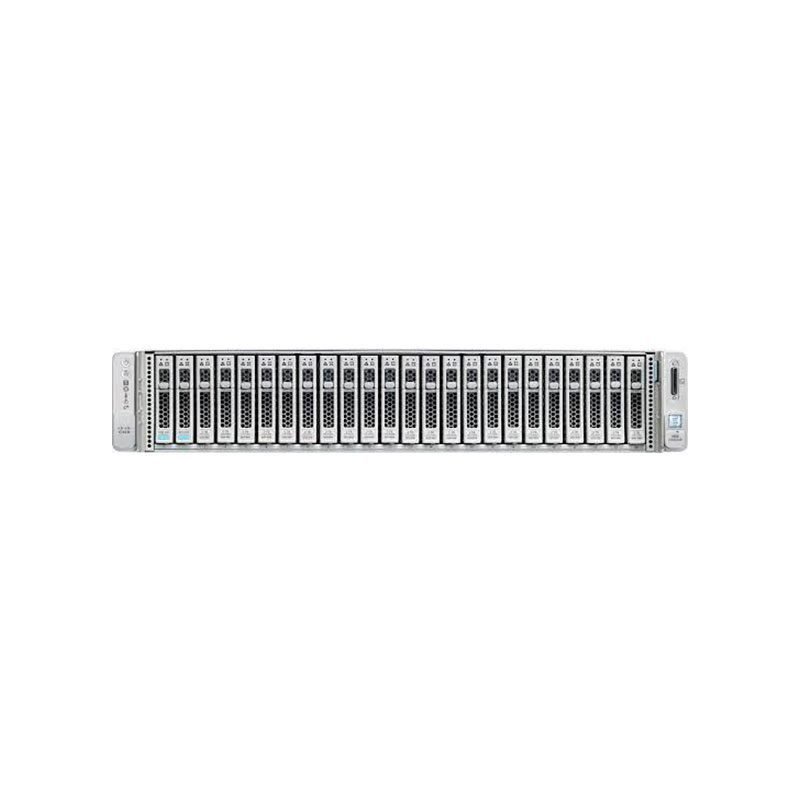

Cisco Systems UCS VDI C240 M4 SX
General Information
Product Name: UCS VDI C240 M4 SX featuring 2XE52667 V3 and 256GB RAM.
Manufacturer Part Number: UCS-VDI-C240M4-K2.
Product Series: C240 M4.
Type: Server.
Cisco UCS.
Controllers
Controller Type: Serial SATA.
RAID Supported: Yes, with levels 0, 1, and 10.
Display & Graphics
Graphics Controller: Matrox G200e with memory capacity up to 8 MB.
Memory
Standard Memory: 256 GB.
Maximum Memory: 1.50 TB.
Memory Technology: DDR4 SDRAM with 24 x DDR4 RAM slots.
Network & Communication
Supports 10 Gigabit and Gigabit Ethernet technologies.
Power Description
Input Voltage: 120 V AC and 230 V AC.
Processor & Chipset
Supports 2 processors, with 2 installed. Processor Manufacturer: Intel.
Processor Type: Intel Xeon E5-2667v3, Octa-core (8 Core), Speed: 3.20 GHz.
Physical Characteristics
Form Factor: Rack, with a 2U rack mount height. Dimensions: Height: 3.4″, Width: 19″, Depth: 30.2″.
