UCSC-C220-M4L Technical Specifications

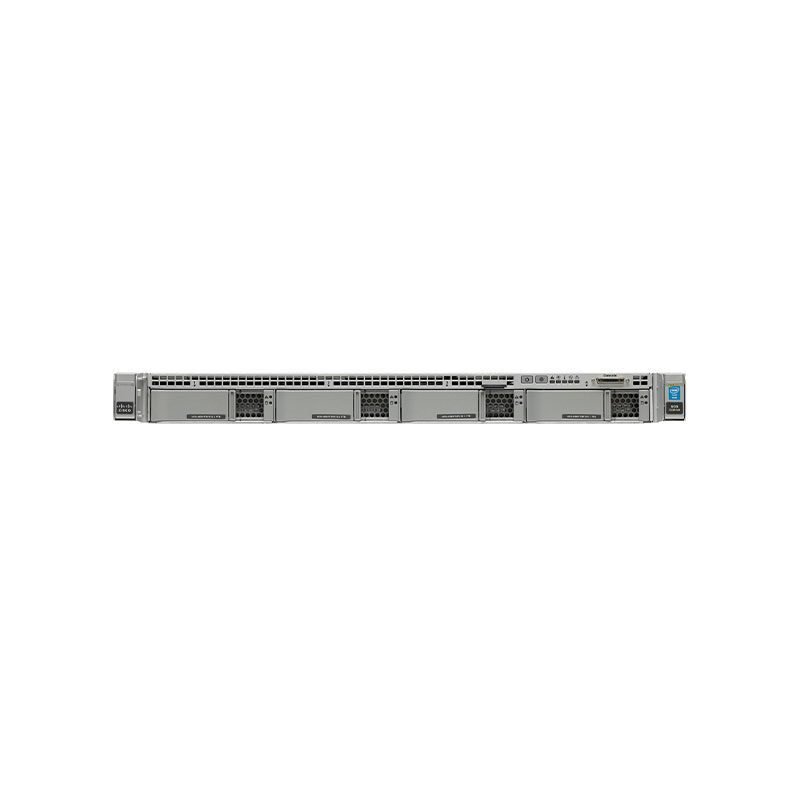

Cisco UCS C220 M4 High-Density Rack Server
Bay Provided
Form Factor: 3.5″ LFF
Free Qty: 4
Total Qty: 4 Bays
Card Reader
Supported Flash Memory Cards: SD Memory Card
Chassis
Form Factor: Rack-mountable
Hot-Swap Bays Qty: 4
Manufacturer Form Factor: Rack-mountable
Server Storage Bays: Hot swap
Server Swappable Drive Form Factor: 3.5″
Server Swappable Drive Interface: SAS
Dimensions & Weight
Depth: 29.8 in
Height: 1.7 in
Width: 16.9 in
Environmental Parameters
Humidity Range Operating: 10 – 90% (non-condensing)
Max Operating Temperature: 95 °F
Min Operating Temperature: 41 °F
Expansion Bays
Form Factor (metric): 8.9 cm LFF
Type: Hot-swap
Expansion Slots
Size: Half-length, low-profile
Size: Three-quarter-length, full-height
Type: PCIe 3.0 x24
Header
Brand: Cisco
Model: C220 M4 High-Density Rack Server (Large Form Factor Disk Drive Model)
Packaged Quantity: 1
Product Line: Cisco UCS
Interface Provided
Connector Type: RJ-45
Type: Serial, KVM, VGA, USB 3.0, LAN (Gigabit Ethernet)
Mainboard
Chipset Type: Intel C612
Processor Socket: LGA2011-v3 Socket
Miscellaneous
Color Category: Silver
Compliant Standards: AS/NZS 60950-1, BSMI CNS 13438 Class A, and more.
Networking
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet Ports: 2 x Gigabit Ethernet
