VDC12 Technical Specifications

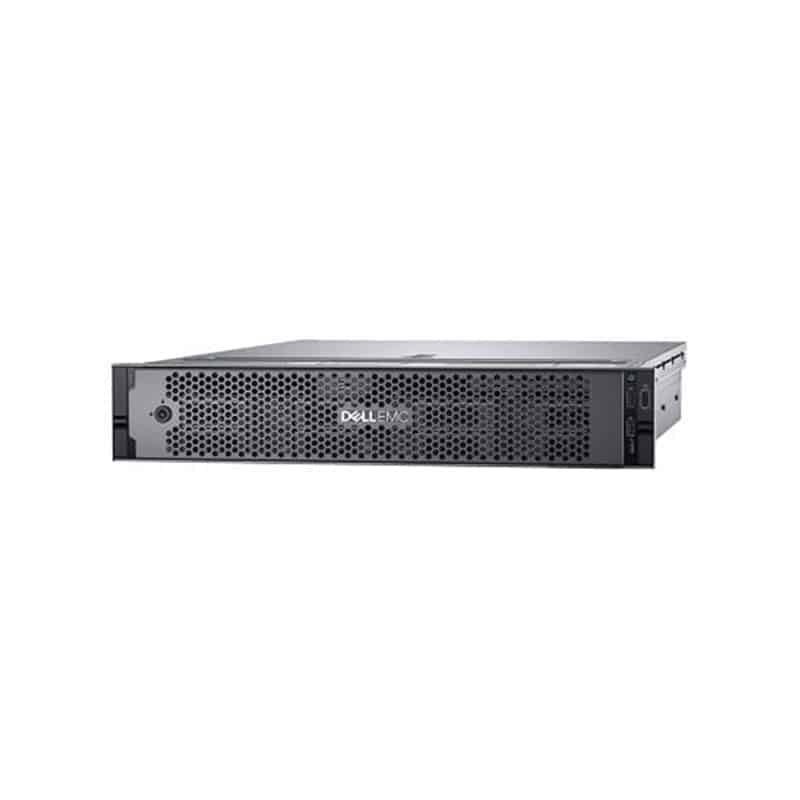

Dell PowerEdge R740 Xeon Silver 4208 16GB 2U Rack Server
Processor
Clock Speed: 2.1 GHz
Installed Qty: 1
Manufacturer: Intel
Max Supported Qty: 2
Max Turbo Speed: 3.2 GHz
Number of Cores: 8-core
Main Features: Intel Turbo Boost Technology 2
Processor Number: 4208
Server Scalability: 2U Rack Mount
Type: Xeon Silver
Upgradability: Yes
Cache Memory
Installed Size: 11 MB
Display
Type: None
Environmental Parameters
Humidity Range Operating: 10 – 80%
Max Operating Temperature: 95 °F
Min Operating Temperature: 50 °F
Header
Brand: Dell EMC
Manufacturer: Server Solutions
Model: R740
Packaged Quantity: 1
Product Line: Dell EMC PowerEdge
Interface Provided
Connector Type: Micro-USB (1 in front), Type A (2), USB 3.0 (1 front, 1 rear), VGA (2 in front), USB 2.0, Management (NIC), Serial
Miscellaneous
Color Category: Black
Height (Rack Units): 2
OS Provided: No operating system
Power Device
Frequency Required: 50/60 Hz
Max Supported Qty: 2
Nominal Voltage: AC 120/230 V
Power Provided: 750 Watt
Power Redundancy: Yes (1+1 with optional power supply)
RAM
Configuration Features: 1 x 16 GB
Empty Slots: 23
Form Factor: DIMM 288-pin
Installed Size: 16 GB
Max Supported Size: 1.5 TB
Memory Speed: 2400 MHz
Rated Memory Speed: 2933 MHz
Slots Qty: 24
Technology: DDR4 SDRAM
Storage Controller
Buffer Size: 2 GB
Installed Qty: 1
RAID Level: RAID 0, 1, 10, 5, 50, 6, 60
Controller Name: Dell PERC H730P
Storage Hard Drive
Capacity: 240 GB
System
Hard Drive Capacity: 240 GB
Type: Server
Dimensions & Weight
Height: 3.4 in
Width: 19 in
