WUS3BA196C7P3E3 Technical Specifications

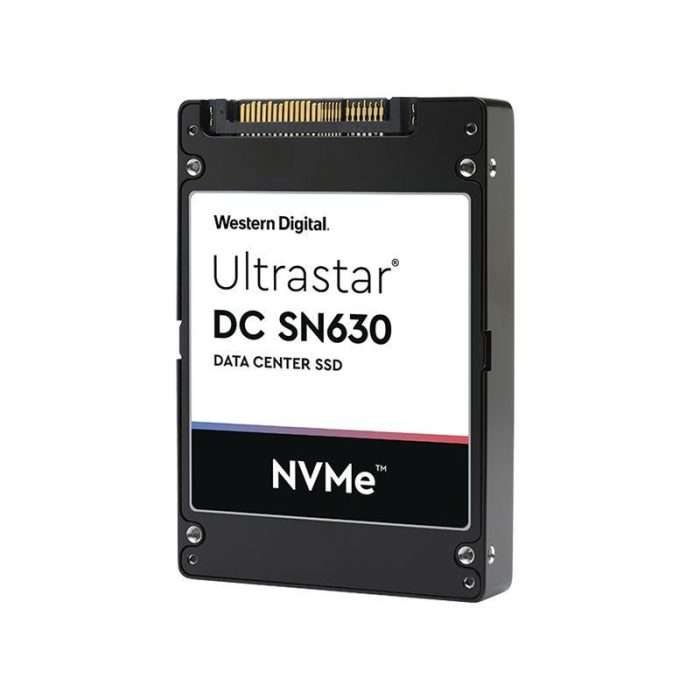

HGST Ultrastar DC SN630 960GB PCIe Gen 3.0 X4 U.2 2.5-Inch Solid State Drive
GENERAL INFORMATION:
- Brand: HGST
- Model: WUS3BA196C7P3E3
- Product Line: Ultrastar DC SN630
- Product Type: Solid State Drive (SSD)
- Product Name: Ultrastar DC SN630 960GB SSD
KEY FEATURES:
- Storage Capacity: 960GB
- Interface: PCIe Gen 3.0 X4 (Compliant with NVMe™ 1.3)
- Form Factor: U.2 2.5-Inch Drive
- MTBF: 2 Million Hours
PERFORMANCE:
- Sequential Read (Max, 128k): 2770 MB/s
- Sequential Write (Max, 128k): 970 MB/s
- Random Read IOPS (Max, 4k): 277,220 IOPS
- Random Write IOPS (Max, 4k): 46,410 IOPS
- Random Mixed R70/W30 (Max, 4k): 114,520 IOPS
PHYSICAL DIMENSIONS:
- Z-Height: 7.00 +0.2/-0.5 mm
- Width: 69.85 +/-0.25 mm
- Length: 100.45 mm
- Weight: 95 g
