XENPAK-10GB-SR Technical Specifications

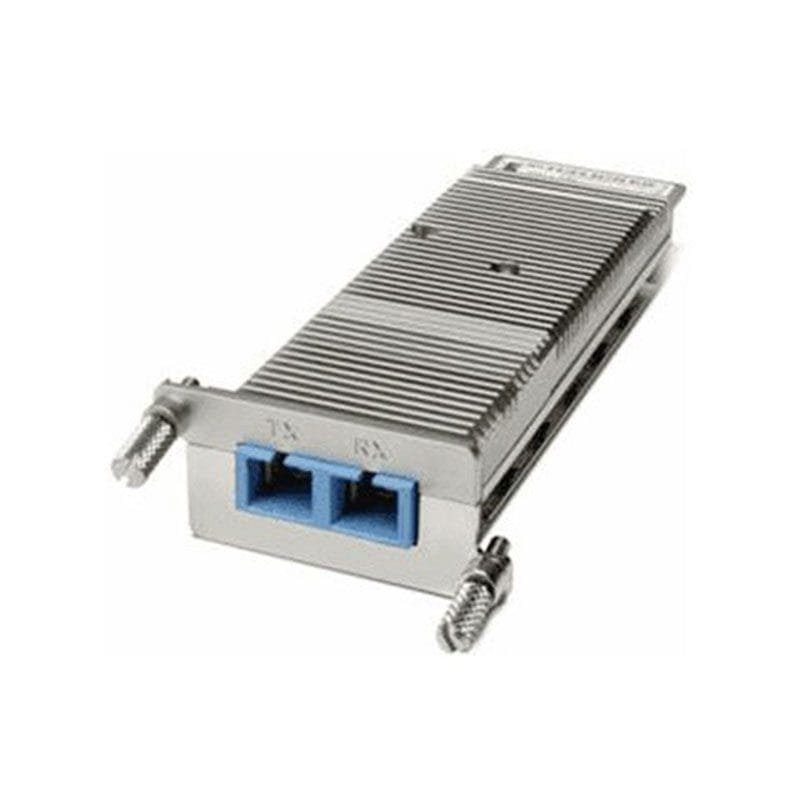

Cisco 10GBASE-SR Transceiver Module Overview
General Information
- Manufacturer: Cisco Systems, Inc
- Manufacturer Part Number: XENPAK-10GB-SR
- Brand Name: Cisco
- Product Name: 10GBASE-SR XENPAK Transceiver Module
- Product Type: XENPAK
Technical Information
- Application/Usage: Data Networking
- Interfaces/Ports: 1 x 10GBase-SR
- Interfaces/Ports Details: 1 x SC Duplex 10GBase-SR
Media & Performance
- Connectivity Media: 62.5 µm Multi-mode Optical Fiber (MMF), 50 µm Multi-mode Optical Fiber
- Distance Supported: Up to 85.30 ft with 62.5 µm Optical Fiber at 160 MHz
- Distance Supported: Up to 108.27 ft with 62.5 µm Optical Fiber at 200 MHz
- Distance Supported: Up to 216.54 ft with 50.0 µm Optical Fiber at 400 MHz
- Distance Supported: Up to 269.03 ft with 50.0 µm Optical Fiber at 500 MHz
- Distance Supported: Up to 984.25 ft with 50.0 µm Optical Fiber at 2 GHz
- Data Transfer Rate: 10 Gbps Gigabit Ethernet
- Ethernet Technology: 10 Gigabit Ethernet
Power Description
- Power Consumption: 8 W Maximum
Environmental Conditions
- Operating Temperature: 32°F (0°C) to 104°F (40°C)
- Storage Temperature: -40°F (-40°C) to 167°F (75°C)
