XX71Y Technical Specifications

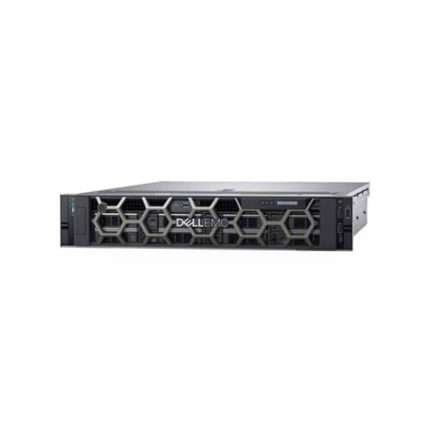

Dell PowerEdge R740 Xeon Silver 4208 32GB 2U Rack Server
Processor
Clock Speed: 2.1 GHz
Installed Qty: 1
Manufacturer: Intel Xeon
Max Supported Qty: 2
Max Turbo Speed: 3.2 GHz
Number of Cores: 8-core
Main Features: Intel Turbo Boost Technology 2
Processor Number: 4208
Scalability: 2-way
Type: Xeon Silver
Upgradability: Upgradable
Bay Provided
Form Factor: 2.5″
Free Qty: 15
Total Qty: 16
Cache Memory
Installed Size: 11 MB
Environmental Parameters
Humidity Operating Range: 10 – 80%
Max Operating Temperature: 95 °F
Min Operating Temperature: 50 °F
Header
Brand: Dell EMC
Model: R740
Packaged Quantity: 1
Product Line: Dell EMC PowerEdge
Interface Provided
Connector Types: Micro-USB, USB 3.0, VGA, USB 2.0, LAN (Gigabit Ethernet), Management (NIC), Serial
Networking
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management: Integrated Dell Remote Access Controller 9 Enterprise (iDRAC9)
Power Device
Nominal Voltage: AC 120/230 V
Power Provided: 750 Watt
Power Redundancy: Yes
RAM
Installed Size: 32 GB
Max Supported Size: 1.5 TB
Memory Speed: 2400 MHz
Dimensions & Weight
Depth: 29 in
Height: 3.4 in
Width: 19 in
