ZP1000CM3A001 Technical Specifications

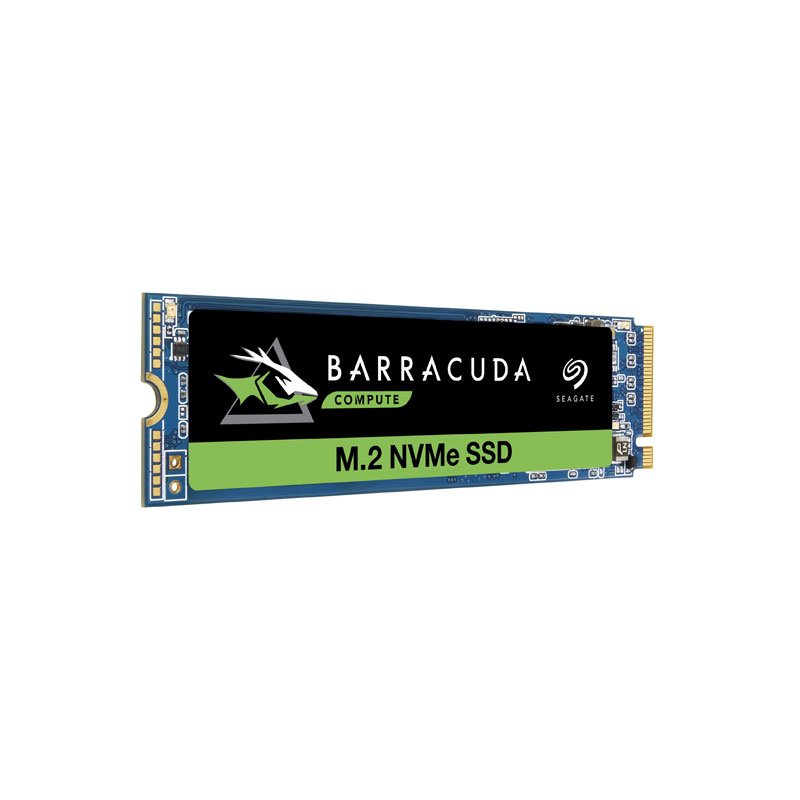

Seagate BarraCuda 510 1TB PCI Express SSD
Manufacturer: Seagate Technology
Brand: Seagate
Product Line: Seagate BarraCuda 510
Model: ZP1000CM3A001
Country Kits: Worldwide
Packaged Quantity: 1
Storage Type: Solid state drive
Hard Drive Type: Internal hard drive
Form Factor: M.2 2280
Storage Interface: PCI Express 3.0 x4 (NVMe)
Capacity: 1 TB
NAND Flash Memory Type: 3D triple-level cell (TLC)
Internal Data Rate: 3400 MBps (Read), 3000 MBps (Write)
Maximum 4KB Random Read: 600,000 IOPS
Maximum 4KB Random Write: 600,000 IOPS
SSD Endurance: 640 TB
Features: Halogen Free, NVM Express (NVMe) 1.3, TRIM support
Compliant Standards: S.M.A.R.T.
Interfaces: 1 x PCI Express 3.0 x4 (NVMe) – M.2 Card
Compatible Bay: M.2 2280
Power Consumption: 2 mW (low power idle), 20 mW (idle), 5.3 Watt (active)
OS Required: Linux, Microsoft Windows 7 / 8.1 / 10
Encryption: TCG Pyrite Encryption, Hardware Encryption: Yes
MTBF: 1,800,000 Hours
Compliant Standards: RoHS
Dimensions: Width: 0.9 inch, Depth: 3.2 inch, Height: 0.1 inch, Weight: 0.31 ounce
Shipping Dimensions: Width: 4.3 inch, Depth: 5.3 inch, Height: 0.9 inch, Weight: 2.15 ounce
