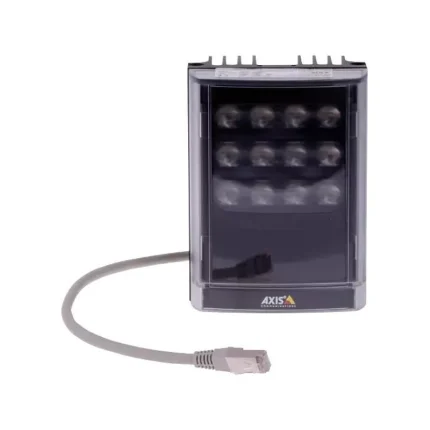

01211-001 AXIS T90D20 PoE IR-LED Illuminator – Infrared Lighting Solution
01211-001 Overview
The 01211-001 AXIS T90D20 PoE IR-LED Illuminator – Infrared Lighting Solution is a professional-grade infrared illuminator designed to enhance nighttime surveillance for Axis network cameras. Powered through PoE (Power over Ethernet), it simplifies installation while delivering powerful 850nm infrared illumination for clear imaging in complete darkness. Featuring interchangeable diverging lenses, the illuminator allows users to optimize beam angles to match the camera’s field of view, ensuring efficient light distribution with minimal overexposure.
1,997.40 AED
Description
| Specification | Details |
|---|---|
| Brand | AXIS Communications |
| Part Number | 01211-001 |
| Model | T90D20 PoE IR-LED |
| Product Type | Infrared LED Illuminator |
| Power Source | PoE+ (IEEE 802.3at) |
| Infrared Wavelength | 850nm |
| Maximum IR Distance | Up to 144m (472 ft) |
| Beam Angles | 10°, 35°, 60°, 80° (120° Optional) |
| Protection Rating | IP66, IK09 |
| Operating Temperature | -50°C to 50°C |
| Mounting | Wall and Pole Mount Compatible |
| Applications | Perimeter Security, Parking Areas, Warehouses, Commercial Surveillance |
Frequently Asked Questions (FAQs)
1. What is the primary purpose of the 01211-001 AXIS T90D20 PoE IR-LED Illuminator?
It provides powerful infrared illumination for Axis network cameras, improving image quality and visibility in complete darkness without using visible light.
2. Does this illuminator require a separate power supply?
No. It supports PoE+ (IEEE 802.3at), allowing both power and data infrastructure to simplify installation and reduce cabling.
3. What beam angles are included with the illuminator?
The unit includes interchangeable 10°, 35°, 60°, and 80° diverging lenses, with an optional 120° lens available for wider coverage.
4. Is the 01211-001 AXIS T90D20 PoE IR-LED Illuminator suitable for outdoor installations?
Yes. It features an IP66 weatherproof rating and IK09 impact resistance, making it suitable for demanding outdoor surveillance environments.
5. What is the maximum infrared illumination distance?
Depending on the selected beam angle, the illuminator can provide infrared coverage of up to 144 meters (472 feet).
6. Why choose this AXIS infrared illuminator for enterprise surveillance?
It combines long-range IR performance, PoE-powered installation, flexible beam angle options, rugged weatherproof construction, and seamless compatibility with Axis security cameras for dependable day-and-night surveillance.
