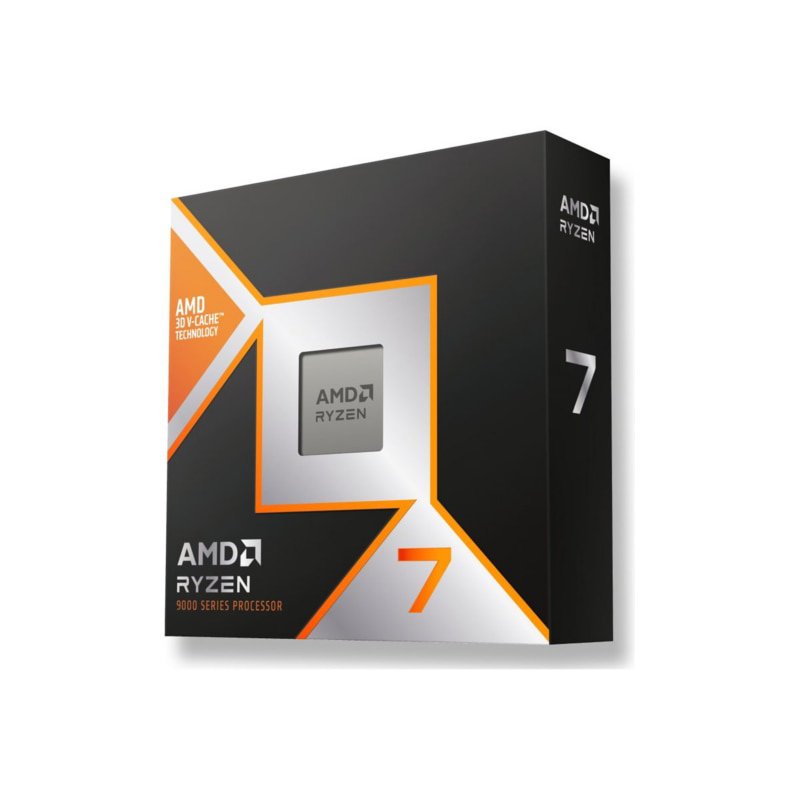

AMD Ryzen 7 9800X3D 4.7 GHz Processor – 100-100001084WOF
AMD Ryzen 7 9800X3D 4.7 GHz Processor. SKU: 100-100001084WOF. Check motherboard CPU support and cooling before installation.
- 8 cores / 16 threads
- 4.7 GHz base frequency
- AM5 socket
- 96 MB cache
- 120 W TDP
1,963.45 AED
Description
Ryzen 7 9800X3D overview
The Ryzen 7 9800X3D is a desktop processor with 8 cores and 16 threads. It combines a 4.7 GHz base frequency with 96 MB L3 cache. Order reference: 100-100001084WOF.
Processor specifications
| Specification | Details |
|---|---|
| Part Number | 100-100001084WOF |
| Brand | AMD |
| Model | AMD Ryzen 7 9800X3D |
| Product Type | Desktop Processor |
| Architecture | Zen 5 |
| Cores | 8 |
| Threads | 16 |
| Base Clock | 4.7 GHz |
| Maximum Boost Clock | Up to 5.2 GHz |
| Socket | AM5 |
| L2 Cache | 8 MB |
| L3 Cache | 96 MB |
| Thermal Design Power | 120 W |
| Memory Support | DDR5 |
| CPU Core Process | TSMC 4 nm FinFET |
| I/O Die Process | TSMC 6 nm FinFET |
| Integrated Graphics | AMD Radeon Graphics |
| Overclocking Capability | yes |
| Maximum Memory Capacity | 256 GB |
Compatibility and installation
- Socket and firmware: Check support for Ryzen 7 9800X3D on the target AM5 platform. Socket fit alone does not confirm chipset or BIOS support.
- Memory: Use DDR5 modules qualified for the selected motherboard and firmware.
- Cooling: Confirm that the platform and cooling assembly are qualified for the listed 120 W processor TDP.
Package and supply details
| Specification | Details |
|---|---|
| Product Format | PIB/WOF |
| Cooler Included | No (standard boxed processor) |
A cooler is not included in the listed configuration. Confirm the correct cooling assembly for the target system.
Manufacturer reference
Request this part
Provide 100-100001084WOF, the quantity you need and your target system model via the quotation request page, and we will confirm current availability and shipping timeframe.
