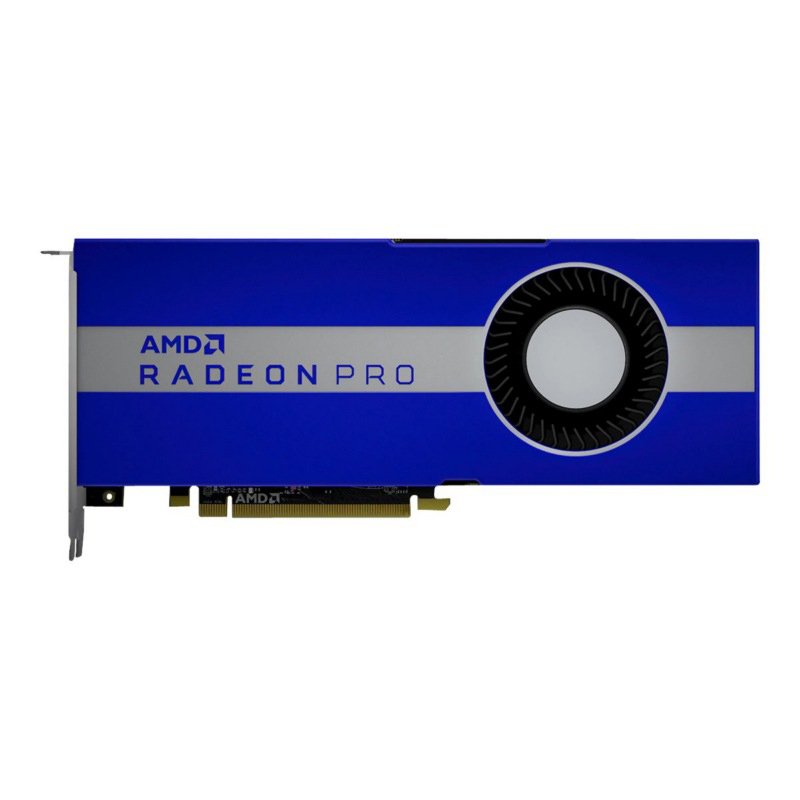

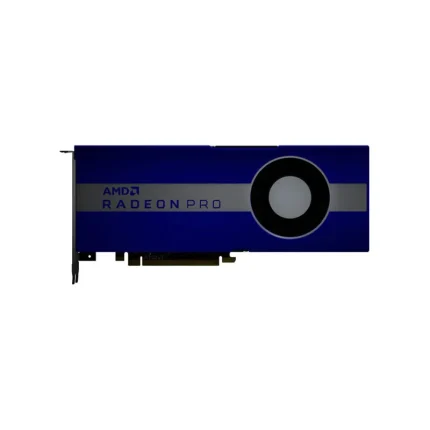

100-506085 AMD Radeon Pro W5700 8GB Graphics Card
100-506085 Overview
The 100-506085 AMD Radeon Pro W5700 8GB Graphics Card is a professional workstation GPU engineered for CAD, 3D modeling, video editing, visualization, VR content creation, and engineering workflows. Built on AMD’s 7nm RDNA architecture, it features 2304 Stream Processors, 8GB of GDDR6 memory, and a 256-bit memory interface delivering up to 448 GB/s memory bandwidth. The card supports PCIe 4.0 x16, five Mini DisplayPort 1.4 outputs, and one USB Type-C port, enabling up to six simultaneous displays.
3,835.15 AED
Description
| Specification | Details |
|---|---|
| Product | AMD Radeon Pro W5700 Graphics Card |
| Part Number | 100-506085 |
| GPU Architecture | AMD RDNA (7nm) |
| Stream Processors | 2,304 |
| Compute Units | 36 |
| Memory Capacity | 8GB GDDR6 |
| Memory Interface | 256-bit |
| Memory Bandwidth | 448 GB/s |
| Bus Interface | PCI Express 4.0 x16 |
| Peak FP32 Performance | Up to 8.89 TFLOPS |
| Display Outputs | 5 × Mini DisplayPort 1.4, 1 × USB Type-C |
| Maximum Displays | Up to 6 |
| Maximum Resolution | 7680 × 4320 (8K) |
| DirectX Support | DirectX 12 |
| OpenGL Support | OpenGL 4.6 |
| OpenCL | 2.0 |
| Vulkan | 1.1 |
| Power Consumption | 205W TBP |
| Power Connectors | 1 × 8-pin, 1 × 6-pin |
| Cooling | Active Blower Fan |
| Form Factor | Full-height, Dual-slot |
| Operating Systems | Windows 10/11 (64-bit), Linux |
Frequently Asked Questions
1. What is the 100-506085 AMD Radeon Pro W5700 primarily designed for?
The AMD Radeon Pro W5700 is built for professional workloads including CAD, 3D rendering, architecture, engineering, product design, video editing, and visualization.
2. How much memory does this 100-506085 graphics card include?
It comes with 8GB of GDDR6 memory and a 256-bit memory interface, providing high bandwidth for demanding professional applications.
3. How many monitors can the Radeon Pro W5700 support?
The card supports up to six displays using five Mini DisplayPort 1.4 connectors and one USB Type-C output.
4. Does this graphics card support PCIe 4.0?
Yes. It features a PCI Express 4.0 x16 interface for high-speed communication with compatible workstations.
5. Is the Radeon Pro W5700 suitable for gaming?
While it can run games, it is optimized for professional workstation applications with certified drivers rather than gaming performance.
6. Which professional APIs are supported?
The card supports DirectX 12, OpenGL 4.6, OpenCL 2.0, and Vulkan 1.1, making it compatible with a wide range of professional graphics and compute applications.
