“Image for reference only. Specs are accurate.”

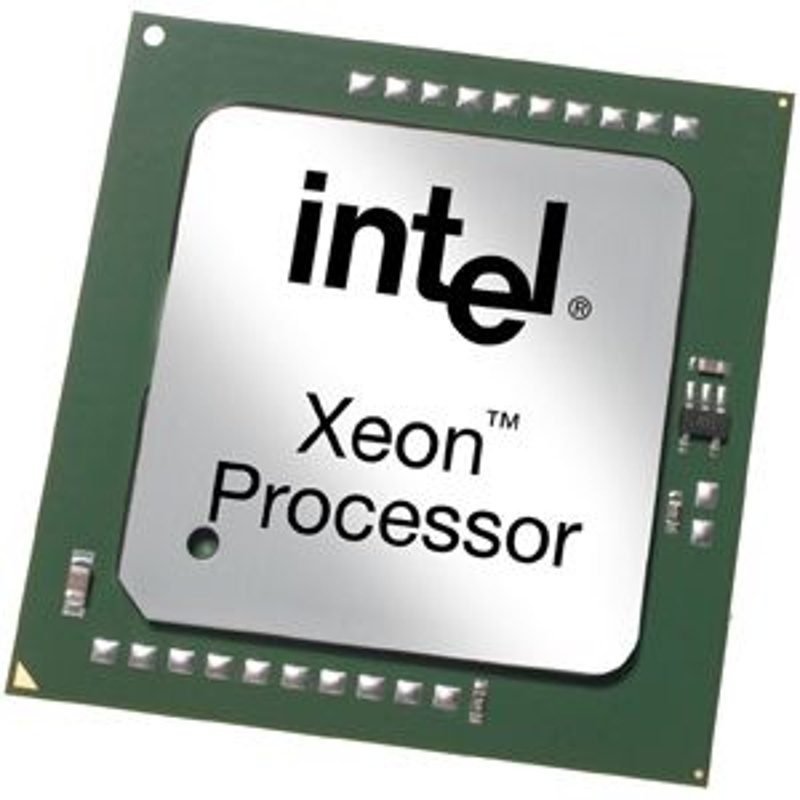

Intel Compaq Xeon 3.06 GHz Processor Upgrade – 354606-B21
Intel Compaq Xeon 3.06 GHz Processor Upgrade. SKU: 354606-B21. Verify the part number against your system’s supported CPU list before ordering.
- 1 core / 1 threads
- 3.06 GHz base frequency
- PPGA604 socket
- 512 KB L2 cache
- 85 W TDP
631.24 AED
Description
Intel Compaq Xeon 3.06 GHz Processor Upgrade overview
354606-B21 identifies the Intel Compaq Xeon 3.06 GHz Processor Upgrade. Its specification includes 1 core and 1 threads, a 3.06 GHz base frequency and 512 KB L2 cache.
Processor specifications
| Specification | Details |
|---|---|
| Part Number | 354606-B21 |
| Brand | Intel |
| Product Type | Processor Upgrade |
| Cores | 1 |
| Threads | 1 |
| Base Clock | 3.06 GHz |
| Socket | PPGA604 |
| L2 Cache | 512 KB |
| Thermal Design Power | 85 W |
| Code Name | Prestonia |
| Manufacturing Process | 130 nm |
| Processor Type | Server |
| Series | Xeon Processor |
| Core Stepping | C1 |
| CPU ID | 0F27h |
| Front Side Bus | 533 MHz |
| VID Voltage Range | 1.5V |
Compatibility and installation
- Socket and firmware: Check support for Intel Compaq Xeon 3.06 GHz Processor Upgrade on the target PPGA604 platform. Socket fit alone does not confirm chipset or BIOS support.
- Bus specification: Compare the 533 MHz front-side bus specification with the original platform requirement.
- Cooling: Confirm that the platform and cooling assembly are qualified for the listed 85 W processor TDP.
Clarify if a heatsink or bundled components ship with the part, and confirm condition and warranty details.
Request this part
When you submit your quote request, reference 354606-B21 along with the quantity needed and your system model. Availability and lead time are confirmed at that stage.
