“Image for reference only. Specs are accurate.”

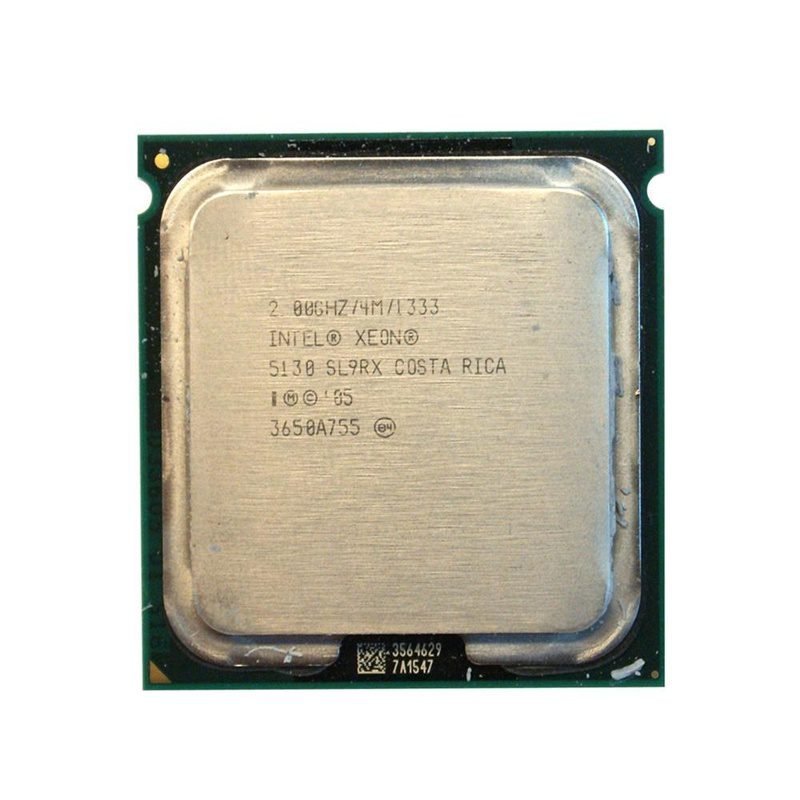

HP Xeon 5130 2.00 GHz Dual Core Processor – 416162-001
HP Xeon 5130 2.00 GHz Dual Core Processor. SKU: 416162-001. Select by Compute Book type and supported X6 configuration.
- 2 cores / 2 threads
- 2 GHz base frequency
- LGA771 socket
- 4 MB L2 cache
- 65 W TDP
Out of stock
Description
Xeon 5130 overview
416162-001 identifies the HP Xeon 5130 2.00 GHz Dual Core Processor. Its specification includes 2 cores and 2 threads, a 2 GHz base frequency and 4 MB L2 cache.
Processor specifications
| Specification | Details |
|---|---|
| Part Number | 416162-001 |
| Brand | HP |
| Model | 5130 |
| Product Type | Server Processor |
| Cores | 2 |
| Threads | 2 |
| Base Clock | 2.00 GHz |
| Socket | LGA771 |
| L2 Cache | 4 MB |
| Thermal Design Power | 65 W |
| Code Name | Woodcrest |
| Manufacturing Process | 65 nm |
| Processor Type | Server |
| Series | Xeon |
| Core Stepping | B0 |
| CPU ID | 6F6 |
| Front Side Bus | 1333 MHz |
| VID Voltage Range | 1.00V-1.50V |
Compatibility and installation
- Socket and firmware: Check support for Xeon 5130 on the target LGA771 platform. Socket fit alone does not confirm chipset or BIOS support.
- Bus specification: Compare the 1333 MHz front-side bus specification with the original platform requirement.
- Cooling: Confirm that the platform and cooling assembly are qualified for the listed 65 W processor TDP.
Package and supply details
| Specification | Details |
|---|---|
| Supply Designation | OEM |
Confirm the quoted package contents, item condition and warranty terms for this part number before purchase.
Request this part
When you submit your quote request, reference 416162-001 along with the quantity needed and your system model. Availability and lead time are confirmed at that stage.
