62418HU Technical Specifications

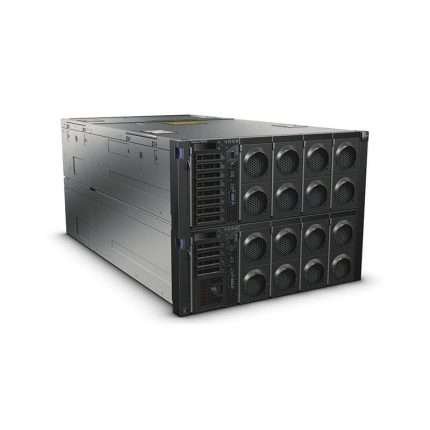

Lenovo System x3950 X6 4x 22C Server
General Information
Product Name: 4x X3950 X6 System x x/2.2 22C 32X32GB 55M
Product Line: System x
Product Series: x3950 X6
Product Model: 62418HU
Product Type: Server
Controllers
Controller Type: 12Gb/s SAS
RAID Supported: Yes
RAID Levels: 0, 1, 10, JBOD
Display & Graphics
Graphics Controller Manufacturer: Matrox
Graphics Controller Model: G200eR2
Graphics Memory Capacity: Up to 16 MB
Memory
Standard Memory: 1 TB
Memory Technology: TruDDR4
Network & Communication
Ethernet Technology: 10 Gigabit Ethernet, Gigabit Ethernet
Power Description
Input Voltage: 120 V AC, 230 V AC
Number of Power Supplies Installed: 8
Maximum Power Supply Wattage: 1400 W
Storage
Total Hard Drive Capacity: 14.40 TB
Hard Drive Interface: 6Gb/s SAS
Hard Drive Configuration: 12 x 1.20 TB
Total Solid State Drive Capacity: 1.60 TB
Solid State Drive Interface: Serial ATA
Solid State Drive Configuration: 4 x 400 GB
Optical Drive Type: None
Processor & Chipset
Number of Processors Supported: 8
Number of Processors Installed: 4
Processor Manufacturer: Intel
Processor Type: Xeon
Processor Model: E7-8880 v4
Processor Core: 22 Core (Docosa-core)
Processor Speed: 2.20 GHz
Physical Characteristics
Form Factor: Rack
Rack Height: 4U
Height: 13.7″
Width: 19″
Depth: 31.6″
