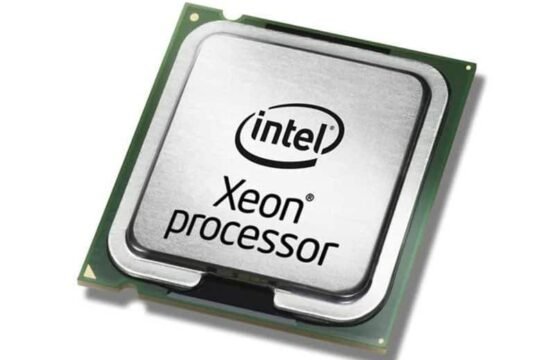

“Image for reference only. Specs are accurate.”
Intel Xeon E5-2630 2.30 GHz 6-Core Processor – 69Y5676
Intel Xeon E5-2630 2.30 GHz 6-Core Processor. SKU: 69Y5676. Match the original HP part and system-board revision.
- 6 cores / 12 threads
- 2.3 GHz base frequency
- LGA2011 socket
- 15 MB cache
- 95 W TDP
2,455.23 AED
Description
Xeon E5-2630 overview
69Y5676 identifies the Intel Xeon E5-2630 2.30 GHz 6-Core Processor. Its specification includes 6 cores and 12 threads, a 2.3 GHz base frequency and 15 MB cache.
Processor specifications
| Specification | Details |
|---|---|
| Part Number | 69Y5676 |
| Brand | Intel |
| Model | E5-2630 |
| Product Type | Server Processor |
| Cores | 6 |
| Threads | 12 |
| Base Clock | 2.30 GHz |
| Socket | LGA2011 |
| L3 Cache | 15 MB |
| Thermal Design Power | 95 W |
| Code Name | Sandy Bridge EP |
| Manufacturing Process | 32 nm |
| Processor Type | Server |
| Processor Family | E5-2600 |
| Series | Xeon Processor |
| Core Stepping | C1 |
| CPU ID | 206D6 |
| Front Side Bus / QPI | 7.20 GT/s |
| VID Voltage Range | 0.60V-1.35V |
Compatibility and installation
- Socket and firmware: Check support for Xeon E5-2630 on the target LGA2011 platform. Socket fit alone does not confirm chipset or BIOS support.
- Cooling: Confirm that the platform and cooling assembly are qualified for the listed 95 W processor TDP.
Package and supply details
| Specification | Details |
|---|---|
| Supply Designation | OEM |
Confirm the quoted package contents, item condition and warranty terms for this part number before purchase.
Request this part
When you submit your quote request, reference 69Y5676 along with the quantity needed and your system model. Availability and lead time are confirmed at that stage.
