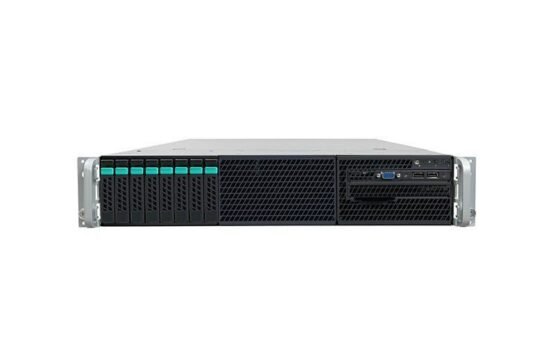

748596-001 HP Proliant DL380p G8 Rack Server with Dual Xeon E5-2690v2 3.0GHz

748596-001 Technical Specifications

HP Proliant DL380p G8 with Dual Xeon E5-2690v2 at 3.0GHz

GENERAL INFORMATION:
Manufacturer: Hewlett Packard
Manufacturer Part Number: 748596-001
Product Name: Proliant DL380p Gen8 2U Rack Mount
PROCESSOR & CHIPSET:
Processor Type: Intel Xeon E5-2690v2 (3.0GHz/10-Core/25MB/8.0GT-S QPI/130W)
Installed Processors: 2
Supported Processors: 2
Multi-Core Technology: Deca-Core (10 Core)
QuickPath Interconnect: 8.0 GT/S
64-Bit Computing: Yes
Upgradability: Upgradable
Processor Features: Hyper-Threading, Intel QuickPath Interconnect, Turbo Boost Technology 2
Chipset: Intel C600
CACHE MEMORY:
Cache Type: L3 Cache
Installed Size: 50MB
Cache per Processor: 25MB
RAM:
Installed RAM: 64GB
Max RAM Supported: 384GB
RAM Technology: DDR3 SDRAM
Memory Speed: 1866MHz
Memory Compliance: PC3-14900
Form Factor: DIMM 240-Pin
Total Memory Slots: 24 DDR3 Slots
Features: Registered, HP Smart Memory
Configuration: 4 x 16GB
STORAGE:
Hard Drive: None
Max Internal Storage: 8 SFF SAS/SATA HDD Bays (Standard), Optional: +8 SFF (Total of 16)
Optical Drive: DVD-Writer
STORAGE CONTROLLERS:
Controller Type: 1 x RAID Integrated – PCI Express 3.0 x8
Interface: SATA 6GB/S / SAS 6GB/S
Channel Quantity: 8
Controller Name: Smart Array P420i with 1GB FBWC
RAID Levels: 0, 1, 5, 6, 10, 50, 60
Buffer Size: 1GB
GRAPHICS:
Graphics Type: Integrated
Graphics Controller: Matrox G200
Video Interface: VGA
NETWORKING:
Type: Plug-In Card
Interface: PCI Express x4
Ethernet Ports: 4 x Gigabit Ethernet
Ethernet Controller: HP 331FLR
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management: Integrated Lights-Out 4
Features: Wake On LAN (WOL), PXE Support
STANDARDS COMPLIANCE:
IEEE 802.3, 802.3u, 802.1q, 802.3ab, 802.1p, 802.3ad (LACP)
