752687-B21 HP Proliant DL380 G9 Base Model with Intel Xeon E5-2620v3

752687-B21 Technical Specifications

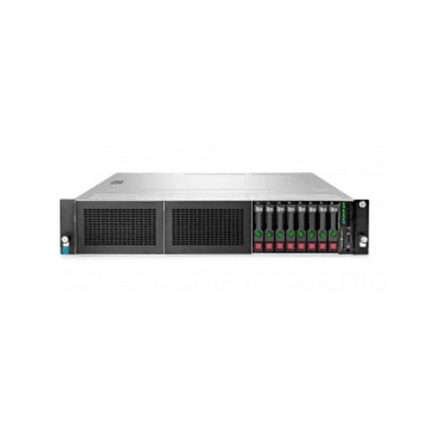

HP Proliant DL380 G9 Base Model with Intel Xeon E5-2620v3/2.40GHz

GENERAL INFORMATION:
Manufacturer: Hewlett Packard
Manufacturer Part Number: 752687-B21
Product Name: Proliant DL380 Gen9 2U Rack Mount (Base Model)
PROCESSOR & CHIPSET:
Processor Type: Intel Xeon E5-2620v3 at 2.4GHz
Multi-Core Technology: Hexa-Core (6 cores)
Installed Quantity: 1
Maximum Supported Quantity: 2
Upgradability: Yes
64-Bit Computing: Supported
Chipset Model: Intel C610
CACHE MEMORY:
Installed Size: L3 Cache – 15 MB
Cache Per Processor: 15 MB
RAM:
Installed Size: 16GB
Maximum Supported Size: 384GB
RAM Technology: DDR4 SDRAM
Memory Speed: 1866 MHz
Form Factor: DIMM 288-Pin
Memory Slots: 24 x DDR4 RAM Slots
Features: Registered, HP SmartMemory
Configuration Features: 1x 16GB
STORAGE & CONTROLLER:
Hard Drive: None
Type: 1x RAID – PCI Express 3.0 X8
Controller Interface Type: SATA 6Gb/SAS 3.0
Storage Controller Name: HP Smart Array P440ar with 2GB FBWC
Channel Quantity: 8
RAID Levels: 0, 1, 5, 6, 10, 50, 60, 1 ADM, 10 ADM
Buffer Size: 2GB
NETWORKING:
Type: Integrated
Interface Type: PCI Express X2
Ethernet Ports: 4x Gigabit Ethernet
Ethernet Controller: HP 331i
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller: Integrated Lights-Out 4
Features: Wake On LAN (WOL), PXE Support
POWER DEVICE:
Power Device Type: Hot Plug Power Supply
Power Redundancy: Optional
Power Redundancy Scheme: 1+1 (with optional power supply)
Installed Quantity: 1
Maximum Supported Quantity: 2
Voltage Required: AC 120/230 V
Power Provided: 500W Hot Plug Power Supplies
80 Plus Certification: 80 Plus Platinum
