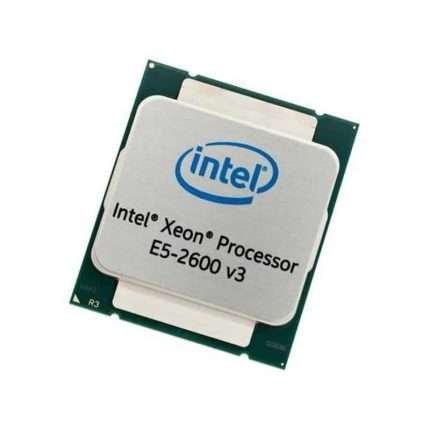

Intel Xeon E5-2640 v3 20 MB Cache Processor – 790096-001
Intel Xeon E5-2640 v3 20 MB Cache Processor. SKU: 790096-001. Confirm the Opteron generation and existing server configuration.
- 8 cores / 16 threads
- 2.6 GHz base frequency
- LGA2011-3 socket
- 20 MB cache
- 90 W TDP
Description
Xeon E5-2640 v3 overview
790096-001 identifies the Intel Xeon E5-2640 v3 20 MB Cache Processor. Its specification includes 8 cores and 16 threads, a 2.6 GHz base frequency and 20 MB cache.
Processor specifications
| Specification | Details |
|---|---|
| Part Number | 790096-001 |
| Brand | Intel |
| Model | E5-2640 v3 |
| Product Type | Server Processor |
| Cores | 8 |
| Threads | 16 |
| Base Clock | 2.60 GHz |
| Socket | LGA2011-3 |
| L3 Cache | 20 MB |
| Thermal Design Power | 90 W |
| Code Name | Haswell |
| Manufacturing Process | 22 nm |
| Processor Type | Server |
| Processor Family | E5-2600 v3 |
| Series | Xeon Processor |
| Core Stepping | R2 |
| CPU ID | 0306F2h |
| QuickPath Interconnect | 8.00 GT/s |
| VID Voltage Range | 0.65V–1.30V |
Compatibility and installation
- Socket and firmware: Check support for Xeon E5-2640 v3 on the target LGA2011-3 platform. Socket fit alone does not confirm chipset or BIOS support.
- Generation: Keep the v3 suffix in the part request; a similarly numbered processor from another generation should not be treated as an automatic replacement.
- Configuration planning: Check software licensing and the server vendor’s processor-pairing rules before increasing core count or adding a second CPU.
- Cooling: Confirm that the platform and cooling assembly are qualified for the listed 90 W processor TDP.
Package and supply details
| Specification | Details |
|---|---|
| Supply Designation | OEM |
Confirm the quoted package contents, item condition and warranty terms for this part number before purchase.
Request this part
Start your order by submitting 790096-001, quantity and system model through the quote request — stock and delivery timing are confirmed once received.
