7X06A0BHCN Lenovo ThinkSystem SR650 2U Rack Server

7X06A0BHCN Technical Specification

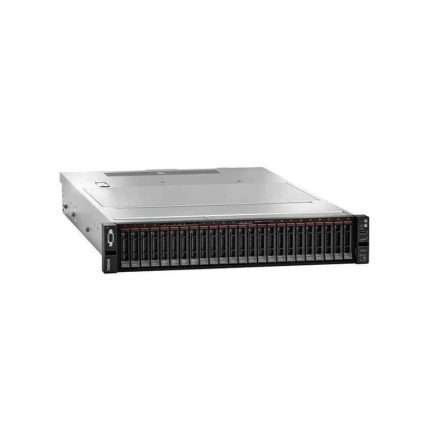

Lenovo ThinkSystem SR650 Server

This 2U rack server is designed to support up to two 2nd Generation Intel Xeon Platinum processors, with a maximum power consumption of 205W. It accommodates up to 9TB of memory, utilizing 24 DIMM slots with 128GB DIMMs and Intel Optane™ DC Persistent Memory at 2666/2933MHz TruDDR4 speeds.
For expansion, the server offers up to 7 PCIe 3.0 slots with various riser configurations, including one dedicated PCIe slot for a RAID adapter. Storage capabilities include up to 14 hot-swap 3.5″ bays or 24 hot-swap 2.5″ bays, with support for 12 AnyBay bays and 24 NVMe bays, plus the option for 2 M.2 boot drives in RAID 1.
In terms of RAID and HBA support, it features hardware RAID with up to 24 ports, including a flash cache and up to 16 ports for HBA. Security features include TPM 1.2/2.0, predictive failure analysis (PFA), and hot-swap/redundant drives, fans, and power supply units, ensuring reliability even in demanding environments.
Network options include 2/4-port 1GbE LOM and 2/4-port 10GbE LOM (Base-T or SFP+), along with a dedicated management port. Power configurations are Energy Star 2.0 compliant, offering hot-swap/redundant options of 550W, 750W, 1100W, or 1600W 80 PLUS Platinum, or 750W 80 PLUS Titanium, as well as -48V DC 80 PLUS Platinum.
System management is facilitated by the embedded XClarity Controller, which includes XClarity Administrator for centralized infrastructure delivery, XClarity Integrator plug-in, and XClarity Energy Manager for centralized server power management. Supported operating systems encompass Microsoft, Red Hat, SUSE, and VMware. For further details, please visit lenovopress.com/osig.
