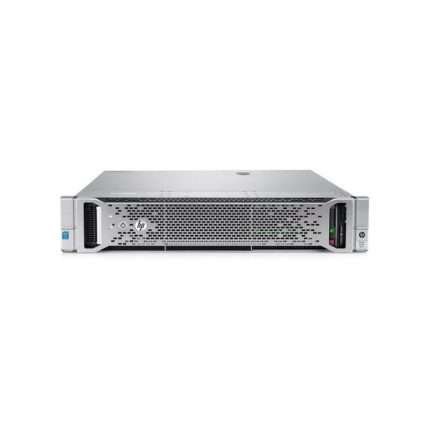

850517-S01 HP Proliant DL380 Gen9 Rack Server

850517-S01 Technical Specifications

HP Proliant DL380 Gen9 Smart Buy featuring 1x Intel Xeon 8-Core E5-2609V4 at 1.7GHz, 8GB DDR4 SDRAM, Smart Array H240AR, and more.

GENERAL INFORMATION :
Manufacturer: Hewlett Packard
Manufacturer Part Number: 850517-S01
Product Name: HP Proliant DL380 Gen9 – 2U Rack Mount Server (Smart Buy Model)
PROCESSOR & CHIPSET :
CPU: Intel Xeon E5-2609v4 / 1.7 GHz
Number Of Cores: Octa-Core (8 Core)
CPU Quantity: 1
Max CPU Quantity: 2
CPU Upgradability: Upgradable
Processor Features: Hyper-Threading Technology, Intel Turbo Boost Technology 2
CACHE MEMORY :
Cache Memory Type: Smart Cache
Installed Size: 20 Mb
Cache Per Processor: 20 Mb
MEMORY :
Installed Size: 8 Gb / 384 Gb (Max)
Memory Technology: DDR4 SDRAM
Memory Speed: 1866 Mhz
Form Factor: DIMM 288-Pin
RAM Slots: 24 x DDR4 RAM Slots
Features: Registered, HP SmartMemory
Configuration: 1 X 8 Gb
Supported RAM: 384 Gb – Registered | 768 Gb – Load-Reduced
STORAGE:
Hard Drive: None.
STORAGE CONTROLLERS:
Type: 1 X RAID – PCIe 3.0 X8
Controller Interface: SATA 6Gb/S | SAS 12Gb/S
Controller Name: HP H240AR Smart Host Bus Adapter
Channel Quantity: 8
RAID Levels: RAID 0, RAID 1, RAID 5, RAID 10
DISPLAY & GRAPHICS :
Graphics Controller: Integrated Matrox G200EH2
Video Memory: 16 Mb
NETWORK & COMMUNICATION:
Ethernet Ports: 2 X 10 Gigabit Ethernet, 4 X Gigabit Ethernet
Ethernet Controller: HP 331i
Data Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet
Remote Management: Integrated Lights-Out 4
Features: Wake On LAN (WOL), PXE Support
Standards: IEEE 802.3, IEEE 802.3U, IEEE 802.3AB
POWER DESCRIPTION :
Device Type: Power Supply – Hot Plug
Power Redundancy: Yes
Redundancy Scheme: 1+1
Installed Quantity: 1
Max Supported Quantity: 2
Nominal Voltage: AC 120/230 V
Power Provided: 500 Watt
80 Plus Certification: 80 Plus Platinum.
