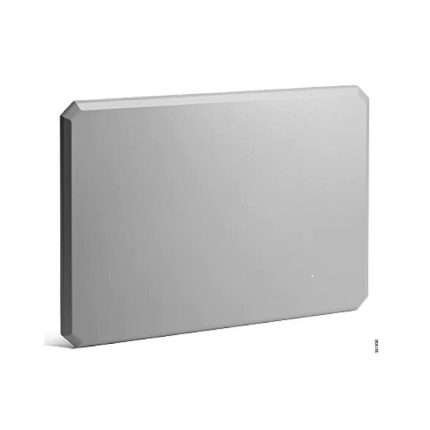

“Image for reference only. Specs are accurate.”
AIR-ANT2513P4M-N Cisco Aironet Four-Port Dual-Band Antenna for Wi-Fi
AIR-ANT2513P4M-N Overview
This four-port dual-band antenna is designed for Wi-Fi applications, featuring a 13 dBi gain. It is suitable for both indoor and outdoor use, allowing for ceiling, wall, and pole mounting. The antenna includes an articulating mount for flat surfaces and masts, providing flexibility in installation and optimal performance across 2.4-GHz and 5-GHz bands.
1,167.00 AED
Description
AIR-ANT2513P4M-N Technical Specifications
Cisco Aironet Four-Port Dual-Band Polarization Diverse Antenna
General
Category of Accessory: Antenna
Antenna
Mounting Options: Ceiling mountable, Indoor, Outdoor, Pole mount, Wall-mountable
Compatibility: 802.11n
Directivity: Directional
Frequency Range: 2.4 – 2.5 GHz, 5.15 – 5.925 GHz
Gain: 13 dBi
Impedance: 50 Ohm
Intended For: Wi-Fi
Voltage Standing Wave Ratio (VSWR): 1.6:1 (2400-2500 MHz), 2.0:1 (5150-5700 MHz), 1.5:1 (5700-5900 MHz)
Environmental Parameters
Max Operating Temperature: 158 °F
Min Operating Temperature: -22 °F
Header
Brand: Cisco
Compatibility: PC
Manufacturer: Cisco Systems
Model: Four-Port Dual-Band Polarization-Diverse Antenna
Packaged Quantity: 1
Product Line: Cisco Aironet
Interface Provided
Connector Quantity: 4
Connector Type: N-Series connector
Miscellaneous
Compliant Standards: IP67
Mounting Kit: Included
Product Type: Antenna
Dimensions & Weight
Depth: 14.5 in
Height: 0.8 in
Weight: 5.07 lbs
Width: 20 in
