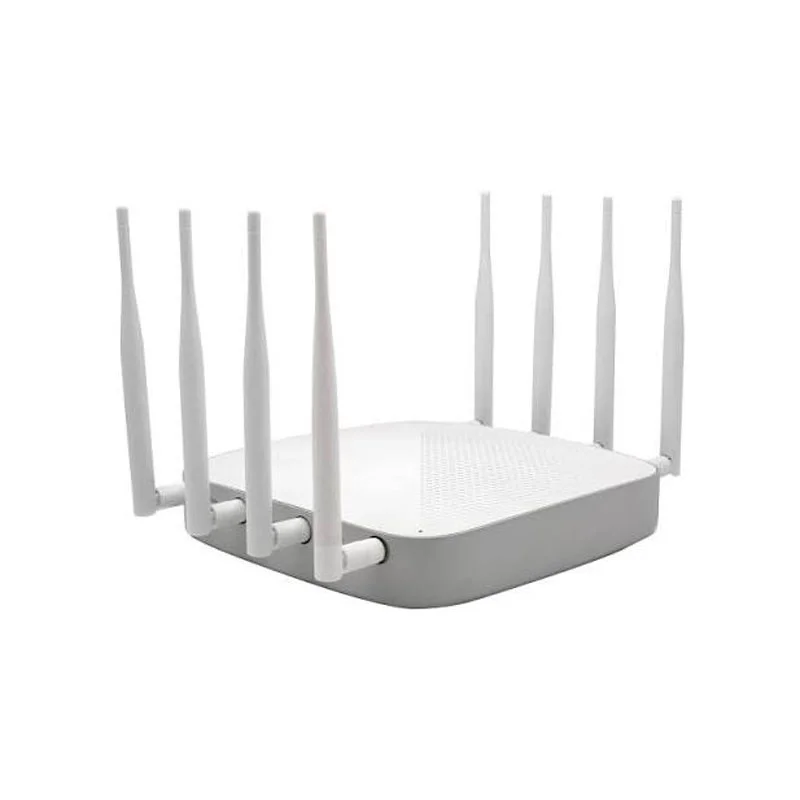

“Image for reference only. Specs are accurate.”
AP510C-FCC Extreme Networks ExtremeWireless AP510C Wi-Fi 6 Wireless Access Point with Bluetooth
AP510C-FCC Overview
The AP510C-FCC Extreme Networks ExtremeWireless AP510C is a high-performance indoor Wi-Fi 6 (802.11ax) access point designed for high-density enterprise environments such as offices, education, healthcare, hospitality, and large public spaces. It features a 4×4:4 dual-radio architecture with software-defined dual 5GHz operation, allowing the access point to optimize wireless capacity and performance for demanding applications including HD video streaming and large file transfers. The AP510C includes integrated omnidirectional antennas, Bluetooth Low Energy (BLE) for location-based services, and Gigabit/2.5GbE connectivity with PoE support. Wi-Fi 6 technologies including OFDMA, MU-MIMO, 1024-QAM, BSS Coloring, and Target Wake Time improve efficiency, capacity, and client performance.
Description
| Specification | Details |
|---|---|
| Brand | Extreme Networks |
| Part Number | AP510C-FCC |
| Model | ExtremeWireless AP510C |
| Product Type | Indoor Wireless Access Point |
| Wireless Standard | Wi-Fi 6 / IEEE 802.11ax |
| Radio Architecture | Dual Radio, Dual 5GHz capable |
| MIMO | 4×4:4 |
| Frequency Bands | 2.4GHz and 5GHz |
| 2.4GHz Frequency | 2.4–2.48GHz |
| 5GHz Frequency | 5.150–5.350GHz and 5.470–5.850GHz |
| Ethernet Port 1 | 100/1000/2500 Mbps BASE-T/TX |
| Ethernet Port 2 | 10/100/1000 Mbps BASE-T/TX |
| PoE | IEEE 802.3af / 802.3at |
| Antennas | Internal omnidirectional antennas |
| Bluetooth | Bluetooth Low Energy (BLE) Beacon |
| BLE Frequency | 2402–2480MHz |
| Wi-Fi Technologies | OFDMA, MU-MIMO, 1024-QAM, BSS Coloring, Target Wake Time |
| Security | Enterprise wireless security and context-based access controls |
| Installation | Indoor ceiling rail, ceiling or wall mounting |
| Operating Temperature | 0°C to +40°C |
| Humidity | 5%–95% non-condensing |
| Application | High-density enterprise wireless networks |
| Regulatory Domain | FCC / United States |
Frequently Asked Questions
1. What is the AP510C-FCC Extreme Networks access point?
The AP510C-FCC is an Extreme Networks ExtremeWireless Wi-Fi 6 indoor access point designed for high-density enterprise wireless environments and demanding network applications.
2. Does the AP510C-FCC support Wi-Fi 6?
Yes. It supports IEEE 802.11ax Wi-Fi 6 technology with features such as OFDMA, MU-MIMO, 1024-QAM, BSS Coloring, and Target Wake Time.
3. Does the Extreme AP510C include Bluetooth?
Yes. The AP510C includes an integrated Bluetooth Low Energy beacon operating in the 2402–2480MHz range for location-based services and other BLE applications.
4. What Ethernet and PoE connectivity does the AP510C provide?
It provides one 2.5GbE-capable Ethernet port and one Gigabit Ethernet port. Both support IEEE 802.3af/at Power over Ethernet.
5. Is AP510C-FCC suitable for high-density wireless networks?
Yes. Its dual-radio 4×4:4 architecture and dual-5GHz capability are designed for high-density indoor environments requiring strong wireless capacity for applications such as HD video and large file transfers.
