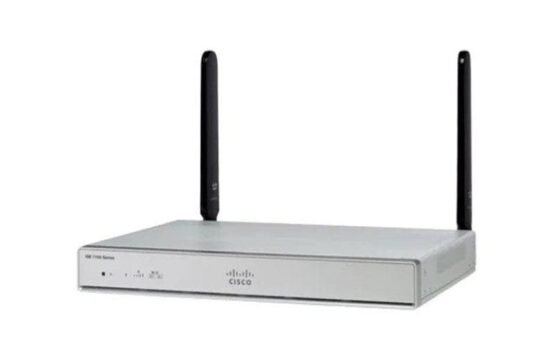

“Image for reference only. Specs are accurate.”
C1111-8PLTELAWN Cisco 1100 Series ISR Router
C1111-8PLTELAWN Overview
The Cisco 1100 Series Integrated Services Router (ISR) offers Cisco IOS® XE Software, ensuring WAN connectivity, robust security features, and both wired and wireless access within a single high-performance unit. Tailored for small to medium-sized enterprise branch offices, the C1111-8PLTELAWN model is equipped with an 8-port dual GE router, LTE Advanced, SMS/GPS functionalities, and 802.11ac -N WiFi capabilities.
Description
C1111-8PLTELAWN Technical Specifications
Cisco 1100 Series Integrated Services Router
Description
The ISR 1100 model features an 8-port dual GE WAN connectivity with LTE Advanced, SMS/GPS, and supports 802.11ac -N WiFi standards.
Physical Properties
Dimensions (H x W x D)
For LTE models:
H x W x D = 1.75 x 12.7 x 9.6 in. (44 x 323 x 244 mm) including rubber feet.
Weight with AC Power Supply (without modules)
Maximum 5.5 lbs. (2.5 kg).
AC Input Power
Input voltage
Universal range of 100 to 240 VAC
Frequency
50-60 Hz
Input current
Without PoE: 0.82A maximum
With PoE enabled: 1.55A maximum
Surge current
90 A peak, less than 8 Arms per half cycle.
Ports
Micro USB Port
Includes one RJ-45: separate console port.
USB port
USB 3.0 Type A host port supporting USB flash memory.
Console port
One USB 5-pin micro Type B for console management connectivity.
10/100/1000 Gigabit Ethernet
Two GE ports available via RJ45 and SFP: one combo port (10/100/1000RJ-45 or SFP) and one dedicated 10/100/1000RJ-45 port.
Wireless VLANs
Supports 32 VLANs (both encrypted and non-encrypted).
Wireless specifications include 2×2 .11ac Wave 2.
Default and maximum DRAM: 4GB. Default and maximum flash: 4GB.
Inline PoE
Four ports for -8P PIDs and two ports for -4P PIDs. Compliant with 802.3af PoE and 802.3at PoE+ standards.
Acoustic performance for Cisco 1100 Series ISRs
Fanless design – not applicable.
