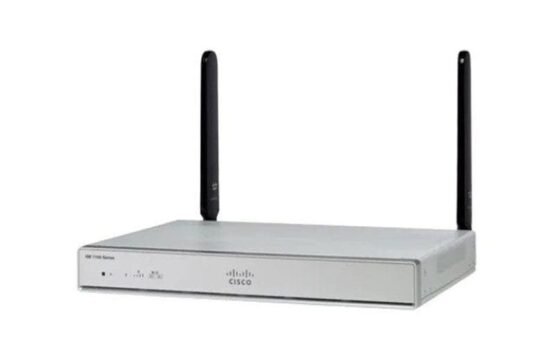

“Image for reference only. Specs are accurate.”

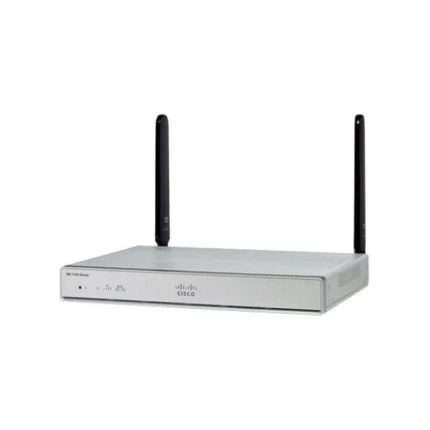

C1113-8PLTELAWZ Cisco 1100 Series ISR Router
C1113-8PLTELAWZ Overview
The Cisco 1100 Series Integrated Services Router (ISR) combines Cisco IOS® XE Software for WAN connectivity, robust security, and both wired and wireless access in a single, efficient platform. Perfect for small to medium-sized enterprise branch offices, the C1113-8PLTELAWZ model features G.FAST GE Router with 802.11ac and LTE Advanced for LATAM & APAC regions, Z WiFi domain.
Description
C1113-8PLTELAWZ Technical Specifications
Cisco 1100 Series Integrated Services Router
This router features a GE/SFP combo port (1), an ADSL2/VDSL2+ with 1 G.FAST (Annex A), and LTE Advanced (CAT6) capabilities for LATAM & APAC. It includes 8 Gigabit Ethernet ports, 4 PoE ports, and 2 PoE+ ports. The device has integrated USB 3.0 for AUX/console connections.
Memory Specifications
– DRAM: 4 GB
– Flash: 4 GB
Console Features
– Micro USB console (USB 3.0)
– Mini-USB port (reserved)
– Micro-USB for remote LTE diagnostics (Qualcomm CAIT and Spirent UDM) (USB 3.0)
Wireless Capabilities
– 802.11ac with 2×2 SU-MIMO/MU-MIMO and maximum data rates up to 866.7 Mbps (80 MHz on 5 GHz).
Power Supply
– Universal AC input voltage: 100 to 240 VAC, with maximum output power of 66W.
Physical Dimensions and Weight
Dimensions: 1.75 x 12.7 x 9.6 in. (44 x 323 x 244 mm). Weight varies from 1.94 lb to 4.89 lb (1.94kg to 2.22 kg).
Environmental Conditions
Operating temperature ranges from 32° to 104°F (0° to 40°C).
