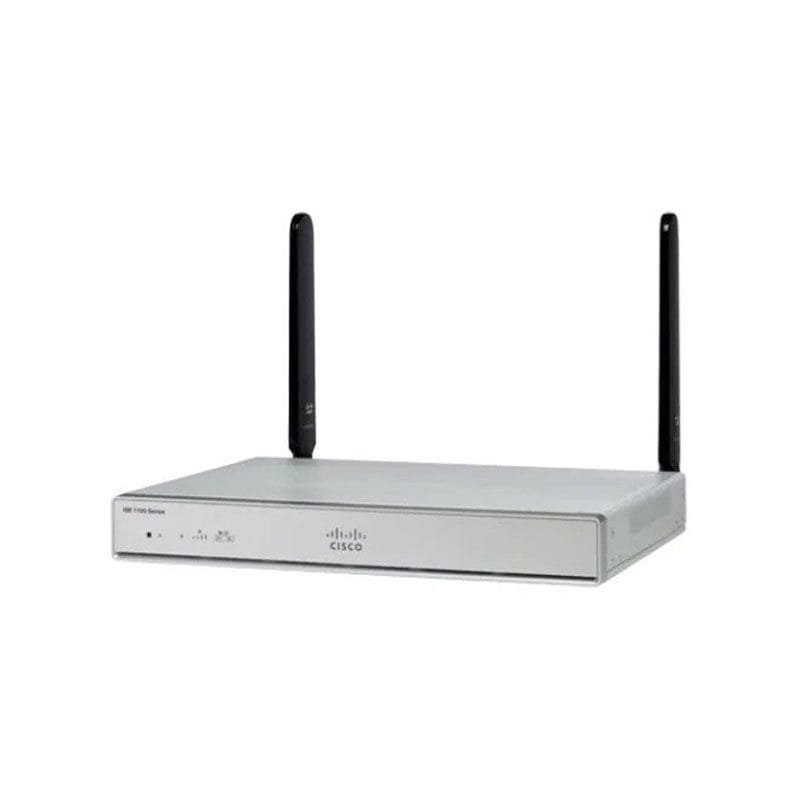

C1113-8PWZ Cisco 1100 Series ISR Router with WiFi
C1113-8PWZ Cisco 1100 Series ISR Router with WiFi
6,661.05 AED
C1113-8PWZ Overview
The Cisco 1100 Series Integrated Services Router (ISR) offers robust Cisco IOS® XE Software, enabling WAN connectivity, comprehensive security, and both wired and wireless access in a single, high-performance device. Tailored for small to medium-sized enterprise branch offices, the C1113-8PWZ features the ISR 1100 G.FAST GE Router equipped with 802.11ac and a Z WiFi domain.
Add to cart
Buy Now
C1113-8PWZ Technical Specifications
Cisco 1100 Series Integrated Services Router
GE: N/A
GE/SFP combo: 1
ADSL2/VDSL2+: 1 G.FAST (Annex A)
LTE Advanced (CAT6): N/A
802.11ac: 2X2 MIMO
GE: 8
PoE: 4
PoE+: 2
Integrated USB 3.0 AUX/console: Yes
Memory (default and maximum)
DRAM: 4 GB
Flash: 4 GB
Console
– Micro USB console (USB 3.0).
– Mini-USB port (reserved)
– Micro-USB port for remote LTE diagnostics and monitoring tools (Qualcomm CAIT and Spirent UDM) (USB 3.0).
802.11ac
– 2×2 SU-MIMO/MU-MIMO with dual spatial streams.
– Maximal Ratio Combining (MRC).
– Supports 20-, 40-, and 80-MHz channels.
– PHY data rates can reach up to 866.7 Mbps (80 MHz on 5 GHz).
– Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Rx).
– 802.11 Dynamic Frequency Selection (DFS).
– Cyclic Shift Diversity (CSD) support.
Software
– Cisco Unified Wireless Network Software with AireOS Wireless Controllers Release 8.5 (8.7 for 1101 series) MR1 or later.
DSL interfaces
– G.FAST (spectrum up to 106MHz) Annex A, Annex B, Annex M, and compatible with ADSL2/2+ and VDSL2.
– ITU G.993.2 (VDSL2) with supported profiles: 8a, 8b, 8c, 8d, 12a, 12b, 17a, and 35b.
– ITU G.9700/9701/997.2 G.FAST with supported profiles: 106a, and 106b.
External power supply
– AC input voltage: Universal 100 to 240 VAC.
– Frequency: 50 to 60 Hz.
– Maximum output power: 66W (default).
– Output voltages: 12 VDC.
– Optional PoE and PoE+:
◦ Single 150W power supply required for Cisco 1100-8P series router
◦ Single 115W power supply required for Cisco 1100-4P series router
– External output voltage: 48 VDC.
USB 3.0
– USB devices supported:
◦ USB eTokens and USB flash memory
– Note: USB 3.0 devices can be connected externally.
LEDs
– WWAN (green/amber).
– SIM status (green/amber).
– Received signal strength indication (RSSI) bar (green).
– 3G/LTE service (green/amber).
– GPS (green/amber).
– Speed and link for Gigabit Ethernet WAN port (green).
– Speed and link for all Fast Ethernet LAN ports (green).
Physical dimensions
(H x W x D)
C111X Models
– 1.75 x 12.7 x 9.6 in. (44 x 323 x 244 mm) (includes rubber feet on LTE models).
– 1.75 x 12.7 x 9.03 in. (42 x 323 x 230mm) (includes rubber feet on non-LTE models).
C1101-4PLTEP and C1101-4PLTEPWX Models
– 1.73 x 9.75 x 6.6 in. (43.9 x 247.6 x 167.6 mm) (includes rubber feet models).
Weight
C111X Models
– 1.94 lb to 4.59 lb (1.94kg to 2.08 kg).
– 4.50 lb (2.04 kg) with LTE Advanced.
– 4.76 lb (2.16 kg) with Wave 2 802.11ac Dual Radio.
– 4.89 lb (2.22 kg) with LTE Advanced plus Wave 2 802.11ac Dual Radio.
Environmental operating range
– Nonoperating temperature: -4° to 149°F (-0° to 65°C).
– Nonoperating humidity: 5% to 95% relative humidity (noncondensing).
– Nonoperating altitude: 0 to 15,000 ft (0 to 4570 m).
– Operating temperature: 32° to 104°F (0° to 40°C). C1101 supports 32° to 113°F (0° to 45°C).
– Operating humidity: 10% to 85% relative humidity (noncondensing).
– Operating altitude: 0 to 10,000 ft (0 to 3000 m).
