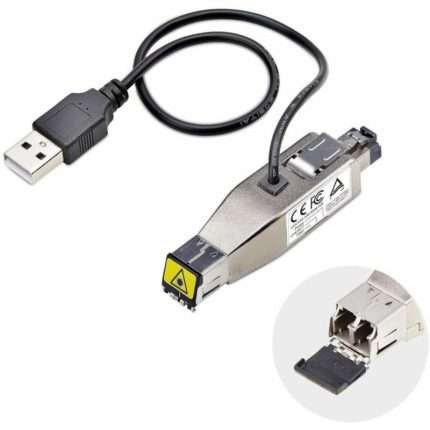

D01ML55U-FIBER-MEDIA StarTech.com Gigabit Fiber to RJ45 Ethernet Converter Dongle, USB Powered
D01ML55U-FIBER-MEDIA Overview
The D01ML55U-FIBER-MEDIA StarTech.com Gigabit Fiber to RJ45 Ethernet Converter Dongle provides a compact way to connect copper Ethernet equipment to fiber networks. It supports 1Gbps Ethernet through an RJ45 port and LC fiber connection, with single-mode fiber distances up to 10km and multimode fiber up to 800m. The unmanaged plug-and-play design requires no drivers or software, while the built-in USB cable provides convenient power. Its IP20 metal housing, LFPT support, and compact size make it suitable for data centers, telecommunications, industrial networks, field deployments, and remote connectivity.
105.32 AED
Description
| Specification | Details |
|---|---|
| Brand | StarTech.com |
| Part Number | D01ML55U-FIBER-MEDIA |
| Product Type | Gigabit Fiber to Ethernet Media Converter Dongle |
| Maximum Data Rate | 1000 Mbps / 1Gbps |
| Fiber Type | Single-Mode / Multi-Mode |
| Single-Mode Distance | Up to 10km |
| Multimode Distance | Up to 800m |
| Fiber Connector | LC Duplex |
| Ethernet Connector | RJ45 |
| Fiber Wavelength | 1310nm |
| Ethernet Standard | IEEE 802.3ab 1000BASE-T |
| Fiber Standard | IEEE 802.3z 1000BASE-LX |
| Auto-Negotiation | Yes |
| Auto MDI/MDIX | Yes |
| Link Fault Pass-Through | LFPT Supported |
| Power Source | USB Powered |
| USB Connector | USB-A Male |
| Maximum Power Consumption | 2.5W |
| PoE | No |
| Chipset | Marvell 88E1512 |
| Housing | Metal and Plastic |
| Protection Rating | IP20 |
| Dimensions | 82.4 x 20 x 17.5mm |
| Weight | 49g |
| Operating Temperature | 0°C to 50°C |
| Operating Humidity | 5% to 85% RH |
| Warranty | 2 Years |
| Compliance | TAA, FCC, CE, WEEE, RCM |
Frequently Asked Questions
1. What is the D01ML55U-FIBER-MEDIA used for?
The D01ML55U-FIBER-MEDIA is used to connect Gigabit RJ45 Ethernet equipment to LC fiber infrastructure. It is suitable for computers, switches, routers, data centers, telecommunications, and remote network installations.
2. What fiber distance does this StarTech.com media converter support?
The converter supports up to 10km over single-mode fiber and up to 800m over multimode fiber. Both fiber types operate at up to 1Gbps when compatible cabling and network equipment are used.
3. Does the D01ML55U-FIBER-MEDIA require an external power adapter?
No. This StarTech.com converter is USB powered and includes an integrated USB-A power cable. It has a maximum power consumption of 2.5W, making it convenient for installations where a separate AC power adapter is not available.
4. Is the StarTech Gigabit fiber converter plug-and-play?
Yes. The converter is an unmanaged plug-and-play device that does not require additional drivers, software, or network configuration. It also supports Auto-Negotiation and Auto MDI/MDIX for simplified installation.
5. Does this fiber-to-Ethernet converter support link fault monitoring?
Yes. The D01ML55U-FIBER-MEDIA supports Link Fault Pass-Through (LFPT) and provides Power, Link/ACT, and Fiber LED indicators to help monitor connection status and identify network link problems.
