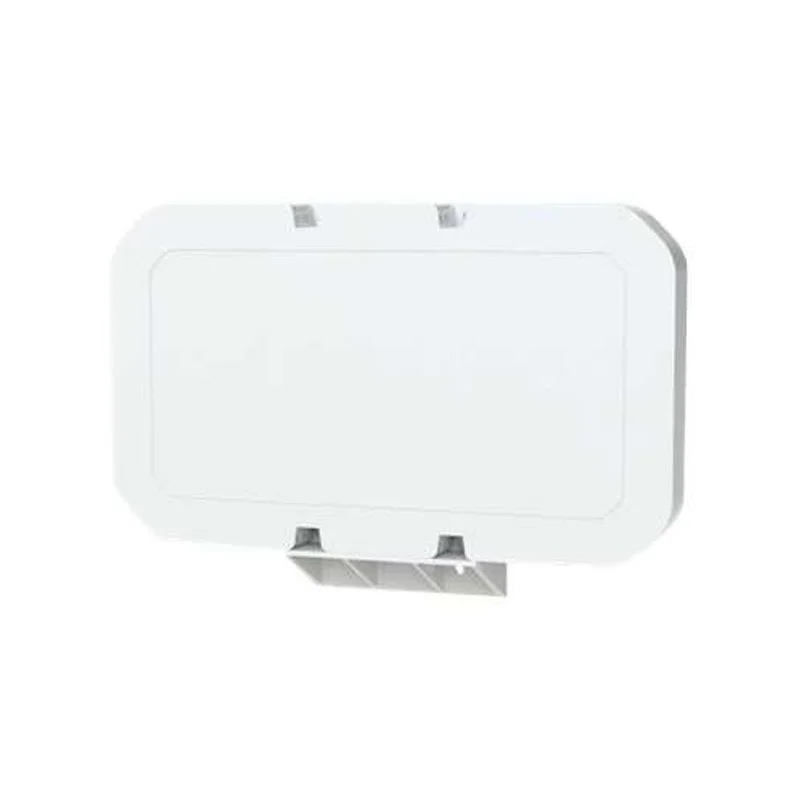

DWMM4-6-60-05NJ Panorama Antennas 4x MiMo 4G/5G Antenna System
DWMM4-6-60-05NJ Overview
The DWMM4-6-60-05NJ Panorama Antennas 4×4 MiMo 4G/5G Antenna System is a professional omnidirectional cellular antenna designed to provide reliable wireless connectivity across 2G, 3G, 4G, and 5G networks. It features four separately fed ultra-wideband elements covering 617–960MHz and 1427–6000MHz, making it suitable for global cellular deployments and high-performance MiMo applications. With up to 7dBi peak gain, low correlation, and IP66-rated construction, it is designed for dependable indoor and outdoor use. The DWMM4-6-60-05NJ includes a 0.5m cable with N-female termination and supports wall, mast, rail, panel, or desk mounting.
800.32 AED
Description
| Specification | Details |
|---|---|
| Brand | Panorama Antennas |
| Part Number | DWMM4-6-60-05NJ |
| Product Type | 4×4 MiMo Cellular Antenna |
| Network Support | 2G / 3G / 4G / 5G |
| Frequency Range | 617–960MHz / 1427–6000MHz |
| MiMo Configuration | 4×4 |
| Peak Gain | Up to 7dBi |
| VSWR | <2.5:1 |
| Impedance | 50Ω |
| Radiation Pattern | Omnidirectional |
| Connector | N-Female |
| Cable Length | 0.5m |
| Ingress Protection | IP66 |
| Mounting | Wall, Mast, Rail, Panel & Desk |
| Operating Temperature | -40°C to +85°C |
Frequently Asked Questions
1. What is the Panorama DWMM4-6-60-05NJ?
The DWMM4-6-60-05NJ is a Panorama Antennas 4×4 MiMo omnidirectional antenna designed for 2G, 3G, 4G, and 5G cellular connectivity across a wide range of frequencies.
2. What frequency range does this 4×4 MiMo antenna support?
The antenna covers 617–960MHz and 1427–6000MHz, providing broad frequency coverage for compatible global cellular and 5G deployments.
3. What type of connector does this antenna use?
This specific version uses an N-female connector with a 0.5-meter integrated cable, making it suitable for compatible cellular networking equipment and installations.
4. Is the antenna suitable for outdoor installation?
Yes. The antenna features an IP66-rated enclosure and an operating temperature range of -40°C to +85°C, making it suitable for demanding indoor and outdoor environments.
5. Where can this 4×4 MiMo antenna be used?
It is suitable for enterprise networking, IoT, fixed-site connectivity, failover systems, industrial applications, cellular routers, and other 4G/5G deployments requiring reliable omnidirectional coverage.
