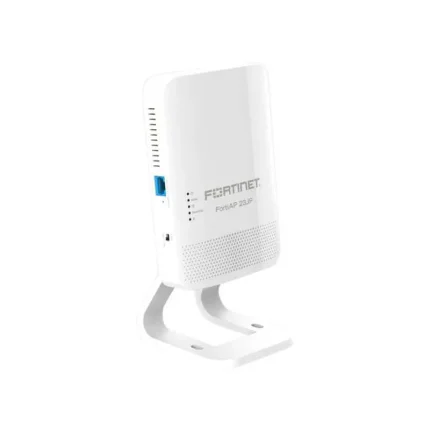

FAP-23JF-A Fortinet FortiAP 23JF – Wi-Fi 6 Access Point with Bluetooth and ZigBee
FAP-23JF-A Overview
The Fortinet FortiAP 23JF is an enterprise-grade Wi-Fi 6 (802.11ax) wall-plate access point designed for hotels, healthcare facilities, offices, student housing, and other high-density indoor environments. It features dual-band 2×2 MU-MIMO, a dedicated security scanning radio, and integrated Bluetooth Low Energy (BLE) and ZigBee for IoT connectivity and location-based services. With Gigabit Ethernet ports, PoE support, and centralized management through FortiGate or FortiEdge Cloud, the FortiAP 23JF delivers secure, high-performance wireless networking for modern enterprise deployments.
1,318.00 AED
Description
| Specification | Details |
|---|---|
| Manufacturer | Fortinet |
| Part Number | FAP-23JF-A |
| Product Series | FortiAP 23JF |
| Product Type | Indoor Wireless Access Point |
| Wireless Standard | Wi-Fi 6 (IEEE 802.11ax) |
| Frequency Bands | 2.4GHz & 5GHz |
| Radio Configuration | Tri-Radio (2.4GHz, 5GHz, Dedicated Scanning Radio) |
| MIMO Technology | 2×2 MU-MIMO |
| Maximum Wireless Speed | Up to 1.77 Gbps |
| Bluetooth | Bluetooth Low Energy (BLE) |
| ZigBee | Yes |
| Ethernet Ports | 4 x Gigabit RJ-45 |
| PoE Support | 802.3at PoE In, 802.3af PoE Out |
| Mounting Options | Wall Plate / Desktop |
| Security | WPA3, WPA2, 802.1X |
| Management | FortiGate WLAN Controller, FortiEdge Cloud |
| Applications | Hospitality, Healthcare, Offices, Education, Multi-Dwelling Units |
Frequently Asked Questions (FAQs)
1. What is the Fortinet FAP-23JF-A designed for?
The Fortinet FAP-23JF-A is a Wi-Fi 6 wall-plate access point designed for hotels, healthcare facilities, offices, dormitories, and other enterprise environments requiring secure, high-performance wireless connectivity.
2. Does the FortiAP 23JF support Bluetooth and ZigBee?
Yes. The FAP-23JF-A includes integrated Bluetooth Low Energy (BLE) and ZigBee radios, making it suitable for IoT devices, asset tracking, and location-based services.
3. How fast is the Fortinet FAP-23JF-A?
The access point delivers combined wireless speeds of up to approximately 1.77Gbps using Wi-Fi 6 technology across the 2.4GHz and 5GHz frequency bands.
4. Can the FortiAP 23JF be powered using PoE?
Yes. It supports IEEE 802.3at Power over Ethernet (PoE) for power input and also provides 802.3af PoE output to power compatible downstream devices.
5. How is the Fortinet FAP-23JF-A managed?
The access point can be centrally managed through a FortiGate appliance with an integrated WLAN controller or via the FortiEdge Cloud management platform.
6. Does the Fortinet FAP-23JF-A support WPA3 security?
Yes. The access point supports WPA3, WPA2, and 802.1X authentication to help protect enterprise wireless networks from unauthorized access.
