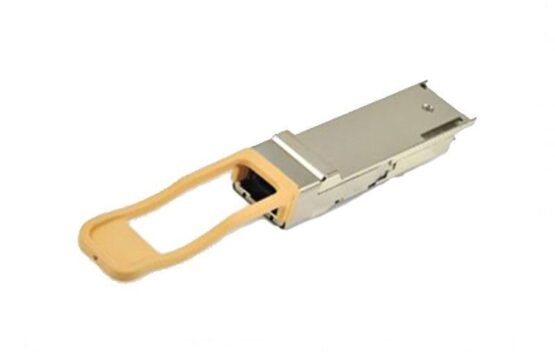

FTLD10CE3C TX/RX Optical Fiber Transceiver 120Gbps
FTLD10CE3C Overview
The FTLD10CE3C is a second-generation CXP transceiver module optimized for high-performance links, supporting speeds of up to 136 Gigabits per second over 12 duplex multimode fiber pairs, ensuring reliable connectivity for demanding applications.
1,945.10 AED
Description
FTLD10CE3C Technical Specifications
TX/RX Optical Fiber 120Gbps
This 12-channel full-duplex transceiver module features a hot-pluggable CXP form factor and is capable of multirate operation, supporting data rates from 1Gb/s to 11.3Gb/s per channel for 10 Gigabit Ethernet applications. It has a maximum link length of 100 meters when using OM3 Multimode Fiber (MMF). The device operates with an unretimed CPPI electrical interface and requires only a 3.3V power supply. With low power consumption of less than 3.5W, it utilizes reliable VCSEL array technology. Additionally, it offers digital diagnostics for monitoring both Tx and Rx optical power. The commercial operating case temperature range for this module is between 0ºC to 70ºC, making it suitable for various environments.
